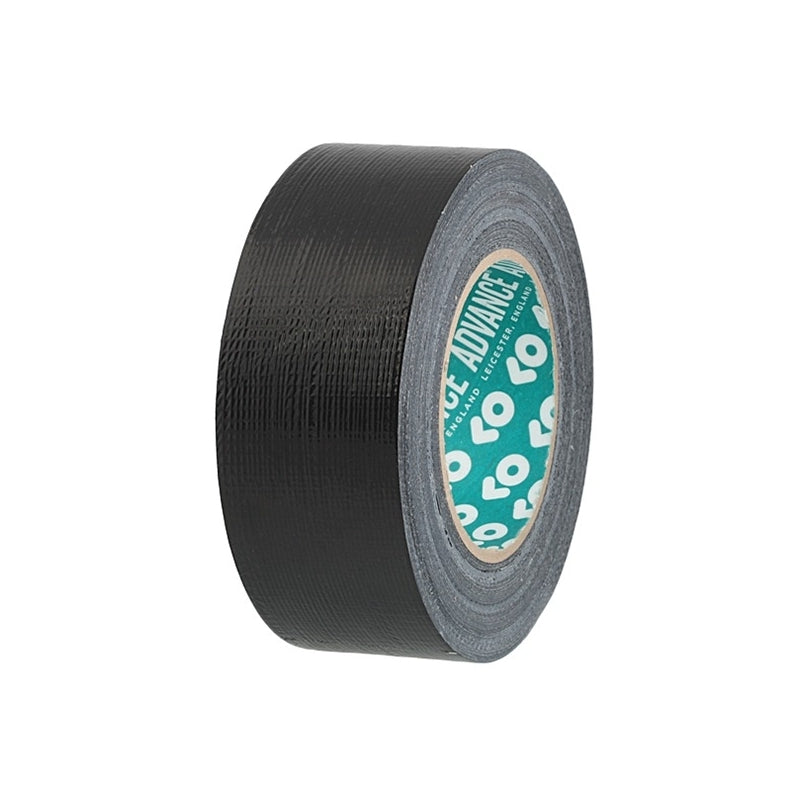

PE LAMINATED CLOTH TAPE AT0171

AT0171 PE LAMINATED CLOTH TAPE: Features, Applications and User Guide

AT0171 PE laminated cloth tape is a robust adhesive tape, designed for demanding environments where resistance to moisture and tearing is essential.

Its polyethylene film laminated onto a cloth backing gives it excellent mechanical strength, even under stress.

Ideal for masking, reinforcement and packaging, it suits many industrial and building sectors.

Introducing AT0171 PE Laminated Cloth Tape

AT0171 PE Laminated Cloth Tape is a robust adhesive tape designed for demanding applications in industry and construction. Its multi-layer design gives it excellent mechanical strength and good durability.

At Dagobert Industrie, we offer this tape for fixing, masking, repair and reinforcement needs on site or in the workshop.

Composition and structure of AT0171 tape

AT0171 is built on a woven cloth laminated with polyethylene (PE). This combination brings both flexibility and waterproofing.

The laminated PE film on the surface protects the backing from moisture and splashes. The inner cloth absorbs mechanical stress without tearing easily.

The adhesive used is generally a natural or synthetic rubber, ensuring good initial tack on smooth, rough or slightly dusty surfaces.

The main strengths of the AT0171 structure:

• Tear resistance thanks to the woven reinforcement
• Waterproofing provided by the PE lamination
• Good adhesion on concrete, wood, metal and plastic
• Tears by hand without tools
• Reasonable UV resistance for temporary outdoor use

This type of tape stands out from paper or PVC tapes through its greater mechanical robustness and its ability to withstand higher tensile loads.

Technical features of AT0171 PE Laminated Cloth Tape

AT0171 PE Laminated Cloth Tape is a cloth-backed adhesive tape covered with a laminated polyethylene film. This construction gives it high mechanical strength combined with good resistance to moisture.

The cloth backing provides the tear resistance and stiffness needed for demanding applications. The PE lamination protects the surface against water and dirt.

The adhesive is a natural or synthetic rubber type, formulated to give fast adhesion on a wide range of substrates: cardboard, wood, metal, plastic.

Main features:

• Backing: woven cloth laminated with polyethylene
• Adhesive: high-performance rubber compound
• Tensile strength: high thanks to the cloth reinforcement
• Moisture resistance: excellent (laminated PE film)
• Hand tearable: across the width
• Application temperature: from +5°C

At Dagobert Industrie, we offer AT0171 to professionals who need a versatile, robust tape that resists damp conditions.

Applications and areas of use of AT0171 Cloth Tape

AT0171 PE Laminated Cloth Tape is a versatile tape designed to meet the needs of building, industry and routine maintenance. Its reinforced cloth and laminated polyethylene film give it mechanical strength and good resistance to moisture.

Uses in building, industry and maintenance

In the building sector, it is used for temporary masking, surface protection and joining tarpaulins or plastic sheeting on sites.

In industry, it holds cable bundles, straps parts together and makes temporary repairs to ducts or sleeves. Its cloth resists tensile forces and tearing.

For maintenance, it allows quick jobs: repairing tarpaulins, fixing temporary protection, marking or labelling equipment.

Its main areas of application:

• Protection and masking on site
• Joining protective films and tarpaulins
• Holding cables and electrical bundles
• Temporary repair of ducts and sleeves
• Strapping and bundling parts
• Temporary marking and signage

Comparison: AT0171 against other cloth tapes in the Advance Tapes range

The Advance Tapes range offers several cloth tapes with very different profiles. Here is how AT0171 compares with the other key references.

AT0171 is a PE laminated cloth tape: its polyethylene backing makes it waterproof and moisture resistant. That is its main advantage over non-laminated cloth tapes.

AT0171 sits in the middle: more robust than a standard cloth tape, without reaching the load level of a reinforced AT0160.

Its polyethylene lamination clearly sets it apart from AT0100 for any use in damp or outdoor environments.

Compared with the double-sided AT0180, the choice is simple: AT0171 is preferred when the visibility of the tape is not an issue and ease of application comes first.

Application tips and good practice for AT0171 PE Laminated Cloth Tape

Good application starts with a clean, dry and degreased surface. Dust, oil or moisture drastically reduce the tape's adhesion.

Apply the tape at a temperature between +10 °C and +40 °C. Below that, the adhesive becomes less supple and bonds less well. Above it, it softens too quickly.

Unroll the tape without stretching it excessively. Applying under tension causes premature lifting at the ends, especially on curved surfaces.

After application, press firmly along the whole length with a roller or your thumb. This activates contact between the adhesive and the substrate: final adhesion is much better.

For joins, allow a minimum overlap of 20 mm. This ensures continuity of the seal and prevents water getting in at tarpaulin joints or site protection.

On sharp edges or corners, cut the tape at 45° rather than straight. Cutting on the bias reduces lifting points and improves long-term hold.

Use a cutter or straight-bladed scissors for a clean cut. An irregular cut weakens the PE laminated cloth and starts tears.

At Dagobert Industrie, we recommend storing the tape away from direct light and moisture, flat or standing on its core, to preserve its performance until application.

FAQ: AT0171 PE LAMINATED CLOTH TAPE

1. What is AT0171 PE laminated cloth tape used for?

AT0171 PE laminated cloth tape is designed for masking, reinforcing and protecting surfaces in demanding environments.

It is particularly suited to packaging heavy loads, repairing tarpaulins, insulating pipes and holding cable bundles.

2. What does PE lamination bring to this tape?

Polyethylene (PE) lamination gives the tape greater resistance to moisture and weather.

It prevents water from passing through the cloth backing, which makes AT0171 reliable outdoors or in areas subject to condensation.

3. Is AT0171 tape tear resistant?

Yes. The cloth backing offers excellent resistance to tearing along and across the tape.

It tears easily by hand without tools, which makes it simple to use on site or in the workshop.

4. Which surfaces does it adhere to properly?

AT0171 adheres to most clean, dry surfaces: metal, wood, rigid plastic, concrete and fabric.

On porous or very irregular surfaces, cleaning beforehand significantly improves the hold.

5. Can this tape be used outdoors?

Yes, the PE laminated face protects the tape against rain and moderate UV, which makes it suitable for temporary outdoor use.

For prolonged exposure to intense UV, a specifically UV-stabilised tape is preferable.

6. How do I remove AT0171 tape without leaving residue?

Clean removal is easier when the tape is applied to a non-porous surface and left in place for a limited time.

If adhesive residue remains, a mild solvent (isopropyl alcohol) is usually enough to clean the surface without damaging it.
