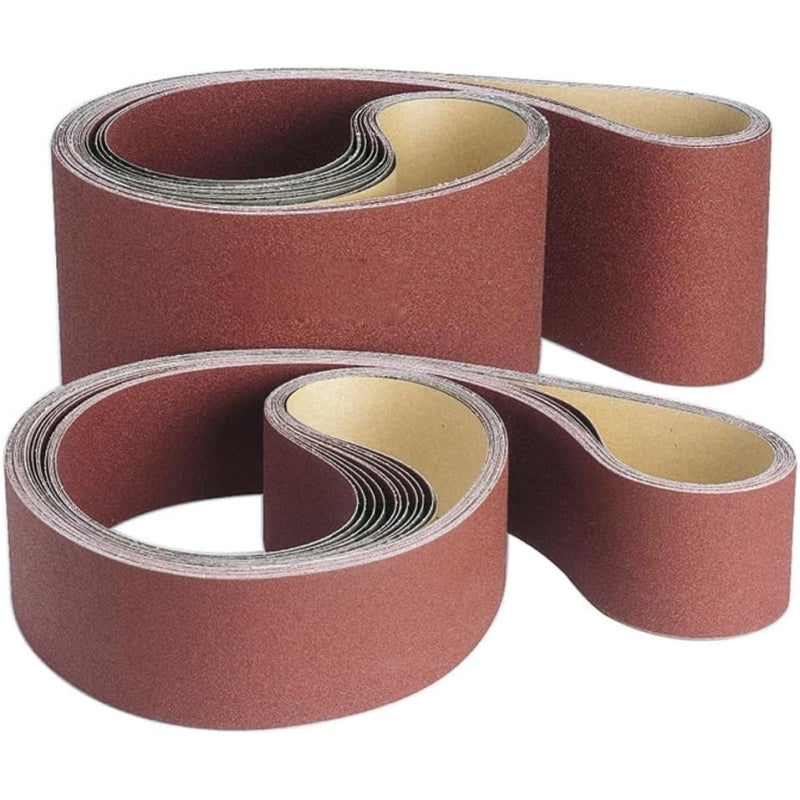

NAXOMAX-R paper-backed abrasive belt: performance and precision for your abrasion tasks

The NAXOMAX-R abrasive belt is tailored for professionals who do not compromise on abrasion quality.

Its robust paper backing ensures optimal grit retention, for precise and uniform sanding on wood, metal, or composite materials.

Designed to last, it resists wear and maintains its abrasive performance throughout the pass.

What is the NAXOMAX-R paper-backed abrasive belt?

The NAXOMAX-R abrasive belt is a paper-backed abrasive belt designed for sanding tasks on wood, metal, and composite materials. It is used on portable belt sanders or stationary machines.

Its corundum abrasive grit (aluminum oxide) offers a clean and uniform cut. The result: a homogeneous surface, without deep scratches, regardless of the material being worked.

Composition and technical characteristics of the paper backing

The paper backing of the NAXOMAX-R is a resistant kraft paper, treated to limit tearing during use. It remains flexible while maintaining good directional rigidity.

This type of backing is perfectly suited for dry applications. It does not support wet sanding: for that, a polyester film or waterproof paper backing would be more appropriate.

The available grits cover a wide range, from coarse grit (P40-P80) for rapid material removal, to fine grit (P150-P240) for finishing and preparation before painting.

Key points of the NAXOMAX-R:

• Electro-fused corundum abrasive, efficient cutting and extended service life
• Kraft paper backing, lightweight and good conformability
• Resin bonding, optimized grit retention under load
• Dry use only
• Compatible with portable and stationary belt sanders

Available grits and grades: finding the right level of abrasion

The NAXOMAX-R abrasive belt is available in a wide range of grits, from the coarsest to the finest. Each grade corresponds to a specific stage of the abrasion work.

From coarse grit to fine grit: what choice for what result?

Coarse grit (P40 to P80) attacks material deeply. It is suitable for roughing, removing old paint, or shaping raw parts.

Medium grit (P100 to P180) prepares the surface after roughing. It is used to smooth, level, and correct visible defects before finishing.

Fine grit (P220 and above) ensures the actual finish. It provides a smooth and uniform appearance, ready for the application of a coating or paint.

Grade	Grit	Typical usage	Adapted materials
Coarse	P40, P80	Roughing, stripping	Raw wood, oxidized metal, hard plastic
Medium	P100, P180	Leveling, intermediate smoothing	Wood, metal, composite
Fine	P220, P320	Finishing, preparation before painting	Wood, painted metal, varnish
Very fine	P400 and +	Polishing, high-precision finishing	Polished metal, lacquer, varnish

At Dagobert Industrie, we offer the NAXOMAX-R in the most common grades to cover the entire process, from the first pass to precision finishing.

Applications and materials compatible with the NAXOMAX-R

The NAXOMAX-R abrasive belt is designed for a wide range of abrasion tasks on fixed or portable belt machines. Its robust paper backing gives it good flexibility while maintaining effective abrasion resistance.

It excels on wood materials: solid wood, MDF boards, plywood, chipboard. Ideal for finishing sanding as well as material removal in roughing.

It is also used on certain lightweight non-ferrous metals and rigid plastics, provided the grit and working speed are adapted.

Here are the typical uses of the NAXOMAX-R:

• Sanding and roughing of solid wood and derivative boards
• Leveling of flat surfaces before finishing
• Light deburring on plastic materials
• Intermediate sanding between layers of varnish or paint
• Work on curves and profiles thanks to the flexibility of the paper backing

Here is how the NAXOMAX-R compares to other common abrasive belts:

Product	Backing	Target materials	Main usage
NAXOMAX-R (Naxos)	Paper	Wood, MDF, light plastics	Wood finishing and roughing
Corundum cloth belt (e.g., Norton Bluefire)	Polyester cloth	Ferrous metals and stainless steel	Intensive metal grinding and deburring
Zirconium cloth belt (e.g., 3M 577F)	Heavy cloth	Steel, stainless steel, foundry	Aggressive material removal
Generic aluminum oxide paper belt	Paper	Wood, paint	Standard sanding, short lifespan

The NAXOMAX-R stands out for its durability/flexibility ratio on wood, where cloth belts are oversized and generic belts wear out too quickly.

NAXOMAX-R vs. other abrasive belts: comparison table

Not all abrasive belts are the same. The paper backing, abrasive grit, and binder make all the difference depending on the intended application.

The NAXOMAX-R is distinguished by its reinforced paper backing and quality abrasive, designed for precise work on wood, metal, or composite materials.

Product	Manufacturer	Backing	Abrasive	Available grits	Main usage
NAXOMAX-R	Naxos	Reinforced paper	Semi-precious corundum	P40 to P220	Wood, metal, general finishing
Hermes RB 406 E	Hermes Abrasives	Paper	Corundum	P60 to P180	Wood, light tasks
Norton Adalox	Norton (Saint-Gobain)	Paper	Aluminum oxide	P60 to P240	Wood, paint, light metal
Sia 1919	Sia Abrasives	Paper	Corundum	P80 to P220	Wood finishing, lacquering
Klingspor PS 22	Klingspor	Paper	Aluminum oxide	P40 to P400	Wood, metal, intensive use

The NAXOMAX-R covers a wide range of grits, from roughing to finishing. It competes directly with established references like the Klingspor PS 22 or the Norton Adalox.

Its strong point: an optimized service life/cutting efficiency ratio for intensive use in workshops or on construction sites.

Tips for use and maintenance to optimize belt lifespan

The NAXOMAX-R abrasive belt lasts longer if used correctly from the start. A few simple habits make a real difference.

Respect the recommended working speed for your grit and material. Too high a speed generates excessive heat that destroys the binder and clogs the belt prematurely.

Apply regular and moderate pressure. Pressing too hard does not accelerate material removal, it wears the belt twice as fast and risks burning the part.

Work in cross passes on large flat surfaces. This movement distributes wear evenly across the entire width of the belt and extends its service life.

Regularly clean the belt with a cleaning stick or an appropriate brush. Clogging is the primary cause of efficiency loss, even before the abrasive grit wears out.

Store your belts away from humidity and temperature fluctuations. A dampened paper backing tears easily when tensioned on the machine.

Systematically check the proper alignment of the belt on the rollers before each use. Poor centering causes lateral wear and premature tearing at the edges.

At Dagobert Industrie, we recommend changing the belt as soon as efficiency drops significantly, rather than waiting for breakage. A worn belt scratches more than it abrades.

FAQ - NAXOMAX-R paper-backed abrasive belt

1. What is the NAXOMAX-R paper-backed abrasive belt used for?

The NAXOMAX-R is designed for sanding and abrading common materials: wood, MDF, light metals, paints, and primers.

Its paper backing makes it particularly suitable for finishing tasks where flexibility and precision take precedence over raw mechanical strength.

2. What is the difference between a paper backing and a cloth backing?

The paper backing is more flexible and less expensive. It is suitable for flat surfaces and fine finishes.

The cloth backing is more resistant to mechanical stress and humidity. It is preferable for intensive work or on irregular surfaces.

The NAXOMAX-R is therefore the right choice when final surface quality is the priority.

3. Which grits are available for the NAXOMAX-R?

The NAXOMAX-R covers a wide range of grits, from coarse grit (from P40) for material removal, to fine grit (P220 and above) for neat finishes.

Choose the grit according to the material being worked and the desired surface finish: the higher the number, the finer the abrasive.

4. On which machines can the NAXOMAX-R be mounted?

The NAXOMAX-R is compatible with standard fixed or portable belt sanders.

Simply check that the belt dimensions (length × width) match your machine's specifications before ordering.

5. Is the NAXOMAX-R suitable for wet sanding?

No. The paper backing does not withstand prolonged humidity. For water sanding, you should turn to belts with synthetic or waterproof cloth backings.

The NAXOMAX-R is intended exclusively for dry use.

6. How can I prolong the lifespan of the NAXOMAX-R?

Avoid excessive pressure on the belt: let the abrasive do the work without forcing. Excess pressure clogs the grit quickly and reduces efficiency.

Store belts flat, away from humidity and temperature variations to preserve their flatness and adhesive.
