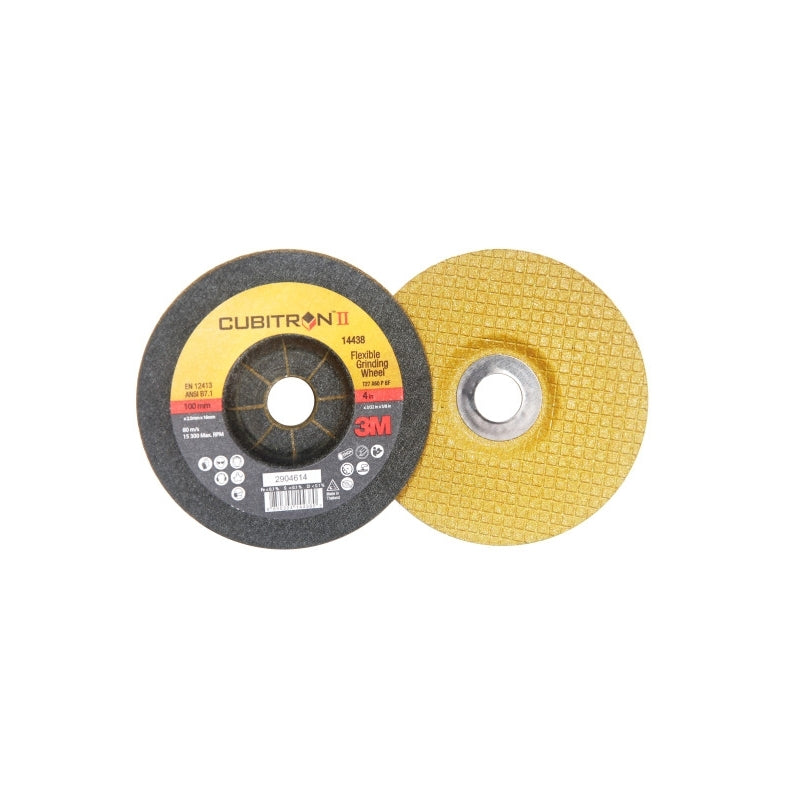

FLEX GRINDING DISC 3M™ CUBITRON™ II

The 3M Cubitron II Flexible grinding disc is a thin, flexible disc with precision-shaped ceramic grain. It grinds, chamfers and deburrs while following the part, where a rigid wheel would attack too harshly.

Specifications

• Mineral: Cubitron II precision-shaped ceramic grain.
• Grits: P36 and P80.
• Diameters: 100 mm (16 mm bore), 115 and 125 mm (22 mm bore), 180 mm.
• Thicknesses: 3 mm, and 4 mm in 180 mm.

Flexible and high-performing

3M presents this disc as the first flexible disc containing its precision-shaped ceramic grains. It is much more flexible than a conventional bonded grinding disc, with higher cutting power and half the wear of the previous reference.

The flexibility makes work more comfortable: the disc absorbs part of the vibration and forgives variations in angle, giving a more even surface.

Applications

Light to medium grinding, chamfering, deburring, weld blending, working slightly curved surfaces. P36 for material removal, P80 to blend and prepare.

Good practice

Keep the grinder guard in place, check the maximum speed of the disc and work with continuous movement. Do not use this disc for cutting.

See also the 3M Cubitron 3 grinding wheel, our grinding wheels and our 3M products.
