Description

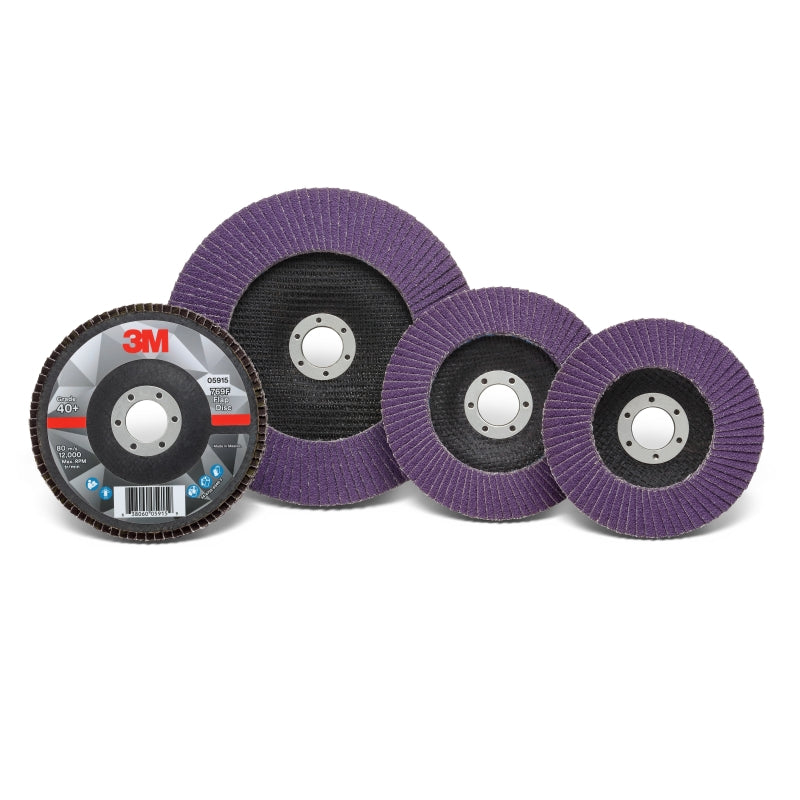

The 3M 769F flap disc combines 3M precision-shaped grain with a tough polyester backing. 3M presents it as outperforming traditional alumina and zirconia flap discs, with a faster, longer-lasting cut.
Specifications
- Mineral: 3M precision-shaped ceramic grain.
- Flap backing: polyester.
- Grits: P40, P60, P80 and P120.
- Diameters: 115, 125 and 180 mm.
Why a flap disc
A flap disc grinds and finishes in a single operation. The flaps wear away one after another, exposing fresh grain: the cut stays consistent throughout the life of the disc. It is more forgiving than a fibre disc or grinding wheel, digs in less and leaves a more even surface.
For steel and stainless steel
3M designs the 769F for carbon steel, stainless steel and other heat-sensitive alloys. The ceramic grain cuts instead of rubbing, which limits heat build-up and discolouration of the part.
Choosing the grit
P40 for weld levelling and heavy removal, P60 for general grinding, P80 to blend, P120 for a finish before satin finishing or painting.
Use
Work at an angle of 5 to 15 degrees for a flat disc, moving continuously. Let the disc do the work: pressing harder does not speed it up and wears the flaps at the edge.
See also the Cubitron II 969F flap disc, our flap discs and our angle grinders.
Quick order
All references for this product. Indicate your quantities and add everything to the cart at once.
| Ref. | Grain | Diameter (mm) | Availability | Price | Quantity | |
|---|---|---|---|---|---|---|
| P120 / 125 (ref. 7100196821) | 3M_7100196821 | P120 | 125 (ref. 7100196821) | On order | €46,50 | |
| P60 / 125 (ref. 7100196799) | 3M_7100196799 | P60 | 125 (ref. 7100196799) | On order | €46,50 | |
| P40 / 125 (ref. 7100196813) | 3M_7100196813 | P40 | 125 (ref. 7100196813) | On order | €46,50 | |
| P60 / 115 (ref. 7100196816) | 3M_7100196816 | P60 | 115 (ref. 7100196816) | On order | €40,80 | |
| P80 / 115 (ref. 7100196820) | 3M_7100196820 | P80 | 115 (ref. 7100196820) | On order | €40,80 | |
| P40 / 115 (ref. 7100196540) | 3M_7100196540 | P40 | 115 (ref. 7100196540) | On order | €40,80 | |
| P40 / 115 (ref. 7100196818) | 3M_7100196818 | P40 | 115 (ref. 7100196818) | On order | €40,80 | |
| P120 / 115 (ref. 7100196539) | 3M_7100196539 | P120 | 115 (ref. 7100196539) | On order | €40,80 | |
| P120 / 115 (ref. 7100196819) | 3M_7100196819 | P120 | 115 (ref. 7100196819) | On order | €40,80 | |
| P40 / 180 (ref. 7100196538) | 3M_7100196538 | P40 | 180 (ref. 7100196538) | On order | €39,30 | |
| P60 / 180 (ref. 7100196800) | 3M_7100196800 | P60 | 180 (ref. 7100196800) | On order | €39,30 | |
| P120 / 180 (ref. 7100196793) | 3M_7100196793 | P120 | 180 (ref. 7100196793) | On order | €39,30 | |
| P80 / 180 (ref. 7100197431) | 3M_7100197431 | P80 | 180 (ref. 7100197431) | On order | €39,30 | |
| P120 / 125 (ref. 7100196815) | 3M_7100196815 | P120 | 125 (ref. 7100196815) | On order | €46,50 | |
| P80 / 125 (ref. 7100196791) | 3M_7100196791 | P80 | 125 (ref. 7100196791) | On order | €46,50 | |
| P80 / 115 (ref. 7100196789) | 3M_7100196789 | P80 | 115 (ref. 7100196789) | On order | €40,80 | |
| P60 / 115 (ref. 7100196817) | 3M_7100196817 | P60 | 115 (ref. 7100196817) | On order | €40,80 | |
| P80 / 125 (ref. 7100196790) | 3M_7100196790 | P80 | 125 (ref. 7100196790) | On order | €46,50 | |
| P60 / 180 (ref. 7100196798) | 3M_7100196798 | P60 | 180 (ref. 7100196798) | On order | €39,30 | |
| P40 / 180 (ref. 7100197061) | 3M_7100197061 | P40 | 180 (ref. 7100197061) | On order | €39,30 | |
| P120 / 180 (ref. 7100196792) | 3M_7100196792 | P120 | 180 (ref. 7100196792) | On order | €39,30 | |
| P80 / 180 (ref. 7100196794) | 3M_7100196794 | P80 | 180 (ref. 7100196794) | On order | €39,30 | |
| P60 / 125 (ref. 7100196797) | 3M_7100196797 | P60 | 125 (ref. 7100196797) | On order | €46,50 | |
| P40 / 125 (ref. 7100196812) | 3M_7100196812 | P40 | 125 (ref. 7100196812) | On order | €46,50 |
Taxes included. Discounts and shipping calculated at checkout.
Need some advice?
Any doubts about a part number or quantity? Our technicians are available to help at 04 50 52 70 89, and we provide quotes for bulk orders within 24 hours.
- Quote within 24 hours
- Dedicated professional rates
- Technical advice by phone
Frequently Asked Questions
Any other questions?
Call us at 04 50 52 70 89 or write to contact@dagobertindustrie.com.
What are the shipping costs and delivery times?
In-stock items are delivered in 48-72 hours. Made-to-order items are delivered within 2 to 3 weeks. DPD delivery costs €5.95 incl. VAT and is free on purchases of €49 incl. VAT or more.
How to choose the right reference?
The specifications for each reference are detailed in the data sheet and the quick order table. If in doubt, call us at +33 4 50 52 70 89: we will guide you to the reference best suited to your application.
Can I order several items at once?
Yes: the quick order pad lists all part numbers. Enter a quantity for each, then add them all to your cart in one click.
I am a professional, can I get a quote?
Yes, email us at contact@dagobertindustrie.com: we will respond within 24 hours. A business account gives you access to your net prices excluding tax.
Can I return a product?
Individuals have 14 days from receipt to withdraw. The product must be new, complete, and in its original packaging. Consult our refund policy.
Is the payment secure?
Yes. Payment is encrypted by our payment provider: we never have access to your bank details.
