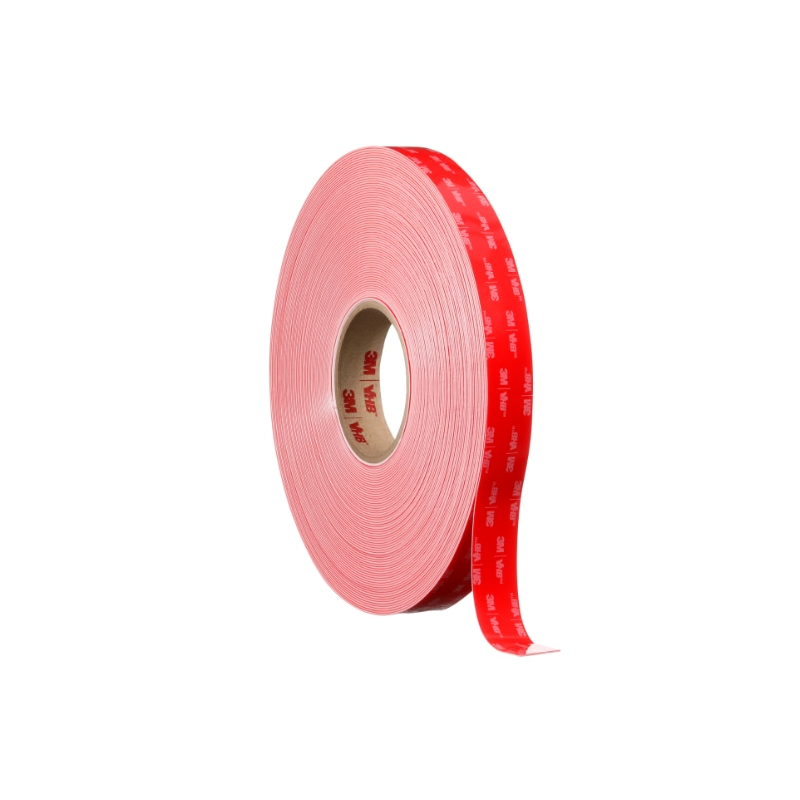

3M™ VHB™ Tape LSE-110

3M™ VHB™ LSE-110 Tape: High-performance double-sided adhesive for low surface energy materials

The 3M™ VHB™ LSE-110 tape bonds where most adhesives fail: on low surface energy (LSE) materials such as polypropylene, polyethylene, or powder-coated paints.

Its double-sided acrylic foam absorbs vibrations, compensates for irregularities, and creates a permanent bond without the need for screws or welds.

Ideal for industrial assembly, attaching panels, or mounting components in demanding environments.

What is 3M™ VHB™ LSE-110 tape?

The 3M™ VHB™ LSE-110 tape is a double-sided acrylic foam tape specifically designed to bond to low surface energy (LSE) materials. It is part of the 3M VHB (Very High Bond) product line, renowned for its exceptional structural performance.

Where most adhesives fail, the LSE-110 holds firm. It is formulated to adhere to materials known to be difficult to bond, such as polypropylene, polyethylene, or certain powder-coated paints.

VHB technology and LSE (Low Surface Energy) specificity

VHB technology is based on a viscoelastic acrylic foam that deforms slightly under pressure to maximize surface contact. The result: a permanent bond that is resistant to vibrations, shocks, and thermal variations.

The LSE specificity goes further. The adhesive is reformulated to "wet" surfaces with a surface energy below 35 mN/m, a critical threshold below which standard tapes fail.

In practice, this enables screw-free and weld-free assembly on:

• Technical plastic parts (PP, PE, TPO)
• Painted body panels (low-energy paints)
• Automotive profiles and trim
• Composites and powder-coated materials

The LSE-110 is a superior replacement for mechanical or chemical solutions, while offering uniform stress distribution across the bonded area, a major asset for assembly durability.

Technical specifications of 3M™ VHB™ LSE-110

The 3M™ VHB™ LSE-110 is a double-sided acrylic foam adhesive tape designed specifically for bonding to low surface energy (LSE) materials.

These surfaces, polypropylene, polyethylene, powder-coated paints, and certain technical plastics, are known to be difficult to bond. Most standard adhesives do not adhere to them properly.

The LSE-110 solves this problem with its high-adhesion acrylic formulation, which is capable of wetting these substrates and creating a durable bond, often without the need for a primer.

Key features:

• Thickness: 1.1 mm (gray acrylic foam)
• High initial adhesion on LSE surfaces
• Strong shear and peel resistance
• Temperature resistance: from -40 °C to +90 °C (peaks up to +149 °C)
• Good resistance to UV, moisture, and common solvents
• Conformable: adapts to slightly irregular surfaces

This tape is an advantageous replacement for mechanical fasteners in assemblies where aesthetics, stress distribution, or weight are important factors.

Product	Thickness	Target substrates	Max. thermal resistance	Typical use
3M™ VHB™ LSE-110	1.1 mm	LSE surfaces (PP, PE, powder coatings)	+149 °C (peaks)	Plastic assembly, bodywork, panels
3M™ VHB™ 4941	1.1 mm	HSE surfaces (metal, glass, ABS)	+149 °C (peaks)	Signage, facades, electronics
3M™ VHB™ 5952	1.1 mm	LSE and HSE surfaces	+149 °C (peaks)	Automotive, painted or textured surfaces
Tesa® ACXplus 7076	1.0 mm	LSE surfaces	+90 °C	Light industrial assembly

The LSE-110 differs from the 4941 in its formulation, which is optimized for difficult plastics. It outperforms standard tapes as soon as the substrate has a surface energy below 35 mN/m.

Industrial applications and compatible materials

Low surface energy materials: plastics, composites, and more

The 3M™ VHB™ LSE-110 Tape is designed to bond to low surface energy materials, where most conventional adhesives fail.

Its specific acrylic formulation allows it to adhere to difficult surfaces such as polypropylene (PP), polyethylene (PE), powder-coated paints, or even lightly oiled coatings.

The main sectors and materials involved are:

• Automotive: fixing trim, badges, PP or ABS body panels
• Electronics: assembly of technical plastic housings
• Plastics industry: bonding polyolefin parts without systematic pretreatment
• Construction & Signage: composite panels, signs, PVC profiles
• Home appliances: assembly of molded plastic parts

The LSE-110 stands out from standard VHB™ tapes (such as the VHB™ 4611 or VHB™ 4910) due to its adhesive specifically formulated for low surface energies, without requiring an adhesion primer in most cases.

Product	Target surface energy	Typical materials	Primer required
3M™ VHB™ LSE-110	Low (≤ 36 mN/m)	PP, PE, powder coatings	Often no
3M™ VHB™ 4611	Medium to high	Metal, glass, ABS	No
3M™ VHB™ 4910	High	Glass, steel, aluminum	No
tesa® 4965	High	Metal, high-energy plastics	No

Comparison: 3M™ VHB™ LSE-110 versus other VHB LSE range tapes

The VHB™ LSE range from 3M includes several references designed for low surface energy materials. The LSE-110 is not the only one, but it occupies a specific position.

Here is how it positions itself compared to other members of the LSE family:

Reference	Thickness	Color	Adhesion strength	Typical use
LSE-110	0.25 mm	Gray	High	Thin assembly, rigid LSE surfaces
LSE-120	0.50 mm	Gray	High	Slightly irregular surfaces, joints
LSE-160	1.60 mm	Gray	Very high	Rough surfaces, thick structural assemblies
LSE-060WF	0.15 mm	White	Moderate	Light applications, neat aesthetics

The LSE-110 is the thinnest in the range with a 0.25 mm foam core. It is suitable for assemblies where space is limited and the surface is flat and rigid.

The LSE-120 doubles the thickness and better absorbs micro-irregularities. Choose this if the surface is not perfectly smooth.

The LSE-160 is the thickest reference: it maximizes contact on rough surfaces and offers superior mechanical resistance to dynamic stresses.

In summary: if your surface is smooth and space is limited, the LSE-110 is the right choice. As soon as the surface has texture or the bond needs to absorb vibrations, opt for a thicker version.

Implementation tips and best practices

The 3M™ VHB™ LSE-110 tape is designed for low surface energy materials, but its effectiveness depends directly on the quality of preparation before bonding.

Clean the surface thoroughly before any application. Use a minimum 70% isopropanol or 3M™ Prep 94 cleaner to remove oils, dust, and residues.

The surface must be dry, clean, and at room temperature (ideally between 15 °C and 38 °C). Below 10 °C, the adhesive loses flexibility, and the initial bond is compromised.

Apply the tape by exerting firm and uniform pressure along the entire length of the joint. Using a 5 to 7 kg roller is recommended to maximize contact with the substrate.

Loading must be gradual. Let the assembly rest for at least 72 hours before applying significant mechanical stress. The final strength is reached after about a week.

A few points to respect:

• Do not stretch the tape during application: this reduces the thickness and weakens the bond
• Avoid any contact with plasticizers or aggressive solvents after bonding
• On curved surfaces, prefer short strips to avoid internal tension
• Store the tape in its original packaging, away from heat and moisture

At Dagobert Industrie, we recommend performing an initial adhesion test on a representative sample of the target substrate, especially for polyolefins (PP, PE) or powder coatings.

FAQ - 3M™ VHB™ LSE-110 Tape

1. What does "LSE" stand for in this tape's name?

LSE stands for Low Surface Energy.

Certain plastics like polypropylene, polyethylene, or TPO are difficult to bond because their surface "repels" classic adhesives. The 3M™ VHB™ LSE-110 is specifically formulated to adhere to these materials without a primer in many cases.

2. On which surfaces does this tape really bond well?

It is designed for low surface energy materials: PP, PE, TPO, certain elastomers, and powder-coat paints.

It also works very well on higher energy surfaces: steel, aluminum, glass, ABS. It is a versatile tape, but its key advantage remains difficult plastics.

3. Is a primer necessary before applying LSE-110?

On most common LSE plastics, the tape adheres without primer if the surface is clean and degreased.

On very difficult or contaminated surfaces, applying 3M™ AP115 primer can significantly improve the final resistance. This is a recommended precaution for assemblies subject to high stresses.

4. What is the thickness of the LSE-110 and why is it important?

The LSE-110 has a thickness of 0.64 mm. This acrylic foam absorbs micro-surface irregularities and distributes mechanical stresses.

Result: the bond is more robust than a liquid adhesive or a thin transfer tape, especially in the face of vibrations, shocks, and thermal expansion.

5. Does the LSE-110 resist outdoor conditions?

Yes. The VHB acrylic foam is resistant to UV, moisture, and temperature fluctuations (-40 °C to +90 °C continuously).

It is used in bodywork, outdoor signage, and industrial equipment exposed to the elements. Long-term durability is one of the strengths of the VHB range.

6. How to achieve the best adhesion with this tape?

Three essential rules: clean, degrease, press.

Clean the surface with a suitable solvent (isopropanol, for example). Apply the tape by exerting firm and uniform pressure of at least 15 N/cm². Then, allow 72 hours for the adhesive to develop its full strength before subjecting the assembly to significant stress.
