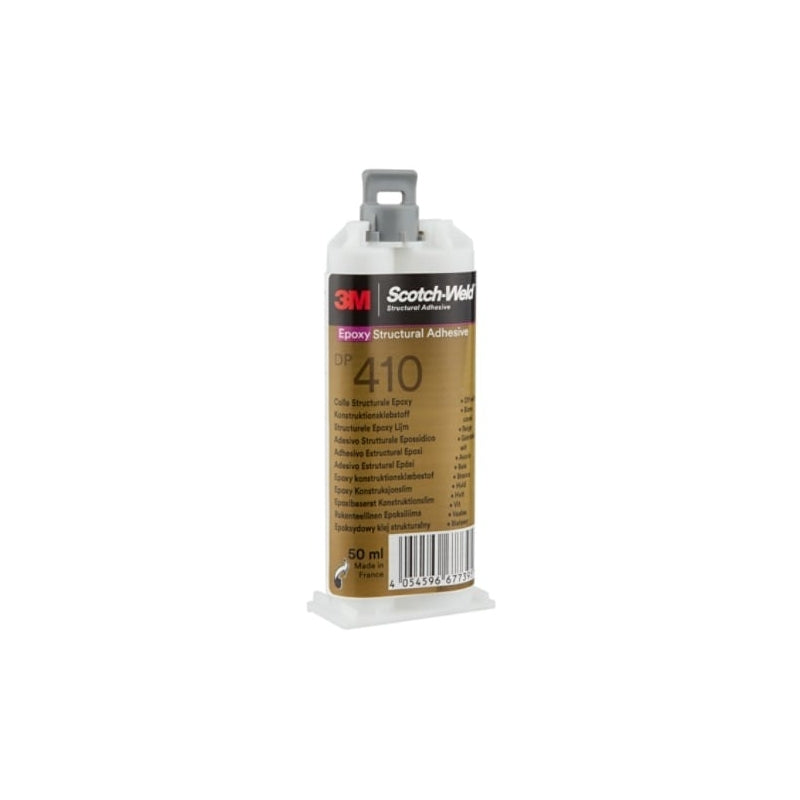

3M™ Scotch-Weld™ DP410 Epoxy Adhesive

3M Scotch-Weld DP410 Epoxy Adhesive: High-Performance Structural Epoxy Adhesive

The 3M Scotch-Weld DP410 is a structural epoxy adhesive designed for assemblies subjected to high mechanical stress. It holds where others fail.

Its two-component epoxy formula ensures high shear strength and excellent adhesion on metals, composites, and plastics.

Ideal for demanding industrial applications, it provides a durable bond, even in harsh environments.

What is the 3M Scotch-Weld DP410 epoxy adhesive?

The 3M Scotch-Weld DP410 is a two-component structural epoxy adhesive developed by 3M for demanding industrial assemblies. It consists of two parts, resin and hardener, that react together to form a rigid and permanent bond.

Once cured, it offers high mechanical strength against tensile, shear, and peel stresses. It is an adhesive designed to last, even in harsh environments.

Formulation and principle of the structural epoxy adhesive

The DP410 is based on high-performance epoxy chemistry. Mixing the resin and hardener triggers a cross-linking reaction that creates a very dense three-dimensional polymer network. The result: a solid, rigid, and chemically resistant bond.

It is easily dispensed via a two-component applicator gun with a dual-cartridge system. The mixing ratio is controlled automatically by the static mixing nozzle, which eliminates dosing errors.

The DP410 is suitable for a wide range of materials:

• Metals (steel, aluminum, stainless steel)
• Composites and laminates
• Rigid plastics (ABS, polycarbonate)
• Wood and porous materials

It is a common choice in aerospace, automotive, electronics, and industrial construction, wherever a simple adhesive is not enough.

Which materials can be bonded with the DP410?

The 3M Scotch-Weld DP410 is a structural epoxy adhesive designed to adhere to a wide range of industrial materials. It is suitable for metals as well as composites and engineering plastics.

Here are the materials compatible with the DP410:

• Metals: steel, aluminum, stainless steel, brass, copper
• Composites: fiberglass, carbon fiber, SMC
• Engineering plastics: ABS, polycarbonate, nylon, epoxy
• Wood and porous materials: solid wood, plywood, MDF
• Ceramics and glass

Thorough degreasing of surfaces remains essential before application. On metals, light sanding significantly improves the strength of the assembly.

Industrial applications and fields of use

The DP410 stands out in demanding sectors where mechanical strength and bond durability are critical.

Its main fields of application:

• Aerospace and defense: bonding of lightweight structures, composite repair
• Automotive industry: assembly of body parts, fixing inserts
• Electronics and electrical engineering: potting, component fixing
• Shipbuilding: bonding of composite/metal hulls
• General industrial manufacturing: replacement of welding or riveting

The DP410 is particularly suitable for metal-to-composite assemblies, a combination that is difficult to join mechanically. It advantageously replaces riveting in many configurations.

Product	Type	Compatible materials	Key strength	Typical usage
3M DP410	Two-component epoxy	Metal, composite, plastic, wood, ceramic	High structural strength, versatility	Demanding industrial assemblies
3M DP420	Two-component epoxy	Metal, composite, plastic	Very high shear strength	High-stress mechanical assemblies
3M DP490	Two-component epoxy	Metal, composite, concrete	Resistance to harsh environments	Marine applications, aggressive environments
Loctite EA 9461	Two-component epoxy	Metal, plastic, composite	Good flexibility after curing	Vibration-prone assemblies

Technical properties and performance of the Scotch-Weld DP410

The 3M Scotch-Weld DP410 is a two-component structural epoxy adhesive formulated for demanding assemblies. It is based on a resin/hardener system that cures at room temperature.

Once cross-linked, it offers high tensile strength and withstands significant mechanical stress. It is suitable for applications subject to vibration or repeated shock.

The DP410 adheres to a wide range of substrates: metals, composites, rigid plastics, and wood. It tolerates slightly oily surfaces, which simplifies surface preparation before bonding.

Its fixed mixing ratio (two-component cartridge) ensures precise and reproducible dosing. No proportion errors are possible, which is a real advantage in production or workshops.

Key technical characteristics:

• Shear strength: up to ~25 MPa on steel
• Open time: approximately 90 minutes at 23 °C
• Temperature resistance: from -55 °C to +120 °C continuous
• Good resistance to solvents and oils
• Final appearance: gray

Product	Type	Open time	Max resistance (°C)	Key strength
3M Scotch-Weld DP410	Two-component epoxy	~90 min	+120 °C	High mechanical strength, oily surfaces
3M Scotch-Weld DP420	Two-component epoxy	~20 min	+120 °C	Faster curing
3M Scotch-Weld DP460	Two-component epoxy	~60 min	+150 °C	High thermal resistance
Loctite EA 9466	Two-component epoxy	~90 min	+130 °C	Good residual flexibility

Comparison: Scotch-Weld DP410 vs. other structural epoxy adhesives

Comparison table: DP410, DP760 and other 3M epoxy references

The market for structural epoxy adhesives offers many references. Here is how the Scotch-Weld DP410 is positioned against its direct competitors.

Product	Manufacturer	Type	Working time	Shear strength	Flexibility	Primary usage
Scotch-Weld DP410	3M	Two-component epoxy	~20 min	Very high (~25 MPa steel)	Rigid	High-strength structural assemblies
Scotch-Weld DP760	3M	Two-component epoxy	~45 min	High (~18 MPa steel)	Semi-flexible	Assemblies with vibration or shock
Scotch-Weld DP100 Plus Clear	3M	Two-component epoxy	~5 min	Medium (~12 MPa steel)	Rigid	Quick repairs, small surfaces
Araldite 2011	Huntsman	Two-component epoxy	~90 min	High (~20 MPa steel)	Slightly flexible	Versatile industrial assemblies
Loctite EA 9466	Henkel	Two-component epoxy	~20 min	High (~22 MPa steel)	Rigid	Metal and composite structures

The DP410 stands out for its particularly high shear strength combined with a comfortable 20-minute working time.

Compared to the DP760, it gains in pure mechanical strength. The DP760 remains preferable for assemblies subjected to repeated vibration.

Compared to Araldite 2011 or Loctite EA 9466, the DP410 offers a similar level of performance, with the advantage of an integrated gun mixing system that simplifies application in production.

Tips for use and implementation of the DP410

The DP410 is applied using an applicator gun suitable for 50 ml or 200 ml two-component cartridges. Mixing of the resin and hardener occurs automatically via a static mixing nozzle.

Always start by purging a few centimeters of product before attaching the mixing nozzle. This ensures a correct mix ratio from the first application.

Surface preparation is decisive for the final bond strength. Degrease thoroughly with a suitable solvent (acetone, IPA) and remove any traces of oxidation through mechanical abrasion.

The open time of the DP410 is approximately 20 to 25 minutes at 23 °C. Assemble the parts quickly after applying the adhesive and hold them in position until the initial set.

Final strength is reached after 24 hours at room temperature. Post-curing at 65 °C for 30 minutes can accelerate the strength build-up if your process requires it.

A few points to remember:

• Recommended application temperature: between 15 °C and 40 °C
• Do not expose the bond to mechanical loads before complete polymerization
• Replace the mixing nozzle every time you resume use
• Store the cartridge away from heat and humidity
• Pot life: do not exceed the time indicated on the packaging after opening

If in doubt about compatibility with your substrate, perform a preliminary adhesion test on a representative sample before starting a production run.

FAQ - 3M Scotch-Weld DP410

1. On which materials can the DP410 be used?

The 3M Scotch-Weld DP410 adheres to a wide range of substrates: metals (steel, aluminum, stainless steel), composites, wood, ceramics, and most rigid plastics.

It is particularly suitable for mixed assemblies, where two different materials must be bonded together in a durable way.

2. What is the difference between black DP410 and white DP410?

The DP410 is available in two colors: black and white. The chemical formulation is identical; only the color of the final bond differs.

The choice depends on the desired aesthetic appearance or the preferred visibility of the glue bead on the final assembly.

3. What is the open time of the DP410?

The DP410 offers an open time of approximately 90 minutes at 23 °C. This provides a comfortable margin for positioning and adjusting parts before they set.

Full mechanical strength is achieved after complete polymerization, typically in 24 hours at room temperature.

4. Does the DP410 resist harsh environments?

Yes. It is a high-performance structural epoxy adhesive designed to withstand shock, vibration, and humidity.

It can withstand temperatures of up to approximately 120 °C in continuous service, making it suitable for demanding industrial applications.

5. How do you properly apply the DP410?

The DP410 is used with a 3M applicator gun and a static mixing nozzle. Resin/hardener mixing occurs automatically at the exit of the nozzle.

Surfaces must be clean, degreased, and slightly abraded to ensure optimal adhesion. A primer may be necessary on some plastics.

6. Can the DP410 replace welding or riveting?

In many cases, yes. The DP410 is a structural substitute adhesive: it distributes stress over the entire bonded surface, unlike a weld spot or a rivet.

It is used in aerospace, automotive, and machinery construction to lighten structures while maintaining high mechanical strength.
