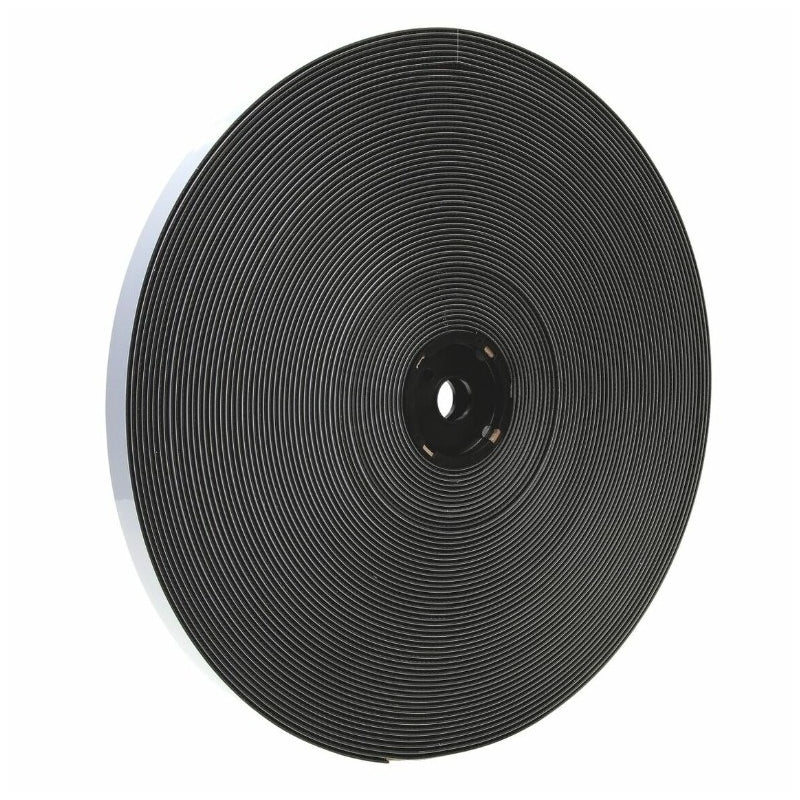

3M™ Dual Lock™ SJ3542 Reclosable Fastener

3M™ Dual Lock™ Reclosable Fastener SJ3542: High-Performance Removable Mechanical Fastening

The 3M™ Dual Lock™ Reclosable Fastener SJ3542 provides a removable mechanical fastening with formidable strength, without the need for screws or permanent glue.

Its interlocking mushroom-shaped stem system generates a high holding force while allowing for quick and repeated removal without damaging surfaces.

Ideal for industrial assembly, panel mounting, or securing components, it adapts to a wide variety of materials thanks to its high-performance adhesive backing.

What is the 3M™ Dual Lock™ Reclosable Fastener SJ3542?

The 3M™ Dual Lock™ Reclosable Fastener SJ3542 is a removable mechanical fastening system based on rigid polypropylene mushroom heads. It effectively replaces standard Velcro and permanent fasteners in many industrial applications.

Unlike traditional Velcro (hook + loop), the Dual Lock™ uses two identical strips: each carries mushroom-headed stems that interlock with one another. The result is a symmetrical, strong, and repeatable fastening.

The SJ3542 model belongs to the transparent series. It incorporates a high-performance acrylic adhesive on its back, allowing for direct application onto most smooth surfaces without drilling or riveting.

Operating principle of the Dual Lock™ system

The assembly is based on the mechanical interlocking of the mushroom heads. When the two strips are pressed against each other, the stems interpenetrate and lock with an audible click.

Unfastening is achieved by progressive peeling, without damaging the stems or the surface. The cycle can be repeated hundreds of times without significant loss of performance.

The SJ3542 features a density of 170 stems/cm², which gives it high shear strength while remaining manually removable. It is the ideal balance for fasteners that are frequently opened and closed.

Comparison of major 3M Dual Lock™ tapes

Part Number	Density (stems/cm²)	Appearance	Adhesive	Typical Use
SJ3542	170	Transparent	High-performance acrylic	Frequent removable fastening, smooth surfaces
SJ3550	400	Black	High-performance acrylic	High-strength fastening, heavy-duty
SJ3560	170	Black	High-performance acrylic	Removable fastening, demanding environments
Velcro® Industries, PS14	Variable	Black / White	Standard adhesive	General purpose, lower shear strength

Technical specifications and typical properties of the SJ3542

The 3M™ Dual Lock™ SJ3542 is a reclosable stem tape made of black polypropylene, designed for repeatable mechanical fastening without tools.

Its stem density is 400 stems/inch² (type 400), which provides high engagement force and excellent resistance to peeling and shear.

The tape backing is equipped with a high-performance acrylic adhesive. It sticks directly to clean, smooth, or slightly textured surfaces without additional mechanical fasteners.

Main typical properties:

• Shear resistance: ~170 N/100 mm
• Peel resistance: ~30 N/100 mm
• Operating temperature range: -40 °C to +70 °C
• Total thickness (tape + adhesive): ~5.1 mm
• Color: Black
• Stem material: Polypropylene

The SJ3542 assembles with itself or with other compatible Dual Lock™ tapes (SJ3550, SJ3551). Engagement produces a characteristic audible and tactile click, confirming the fastening.

Product	Stem density	Shear strength	Adhesive	Typical use
3M SJ3542	400 stems/in²	~170 N/100 mm	HP Acrylic	Industrial fastening, smooth surfaces
3M SJ3550	250 stems/in²	~90 N/100 mm	HP Acrylic	Light fastening, frequent removal
3M SJ3551	400 stems/in²	~170 N/100 mm	HP Acrylic	Identical to SJ3542, sold in continuous roll
Industrial Velcro® (hook/loop)	N/A	~80-120 N/100 mm	Varies by version	Textile fastening, general use

Comparison: 3M™ Dual Lock™ SJ3542 versus other removable fastening solutions

The removable mechanical fastening market offers several product families. Here is how the 3M™ Dual Lock™ SJ3542 compares to common alternatives.

Comparison table: Dual Lock™ SJ3542 vs. other Dual Lock™ references and industrial Velcro

Product	Manufacturer	Stem type	Density (stems/cm²)	Peel strength	Chemical resistance	Typical use
Dual Lock™ SJ3542	3M	Rigid mushroom	250 stems/cm²	High	Good	Industrial fastening, panels, enclosures
Dual Lock™ SJ3550	3M	Rigid mushroom	400 stems/cm²	Very high	Good	Heavy loads, intense vibrations
Dual Lock™ SJ3560	3M	Rigid mushroom	170 stems/cm²	Moderate	Good	Light assemblies, frequent access
Industrial Velcro® (hook/loop)	Velcro Industries	Textile hook + loop	Variable	Moderate	Low to medium	Textile, light fastening, general use

The SJ3542 distinguishes itself from classic Velcro through its stem-to-stem system: both sides are identical and interlock with an audible click.

The result: shear strength significantly superior to textile Velcro, with no snagging on fibers or rapid degradation of the loops.

Compared to the SJ3550 (400 stems/cm²), the SJ3542 offers easier unfastening, ideal when frequent access to a component is necessary. Compared to the SJ3560, it handles higher loads while remaining removable without tools.

It is the right compromise between solid hold and practical removal, typically for signage panels, electronic enclosures, or modular equipment.

Applications and areas of use for the SJ3542 stem tape

The 3M™ Dual Lock™ Reclosable Fastener SJ3542 is designed for removable mechanical fastenings that must withstand repeated stress. It effectively replaces standard Velcro in demanding environments.

Its principle relies on rigid mushroom stems that interlock with an audible click. The bond obtained is much stronger than a standard Velcro, while remaining manually removable.

The SJ3542 is distinguished by its density of 400 stems/in², which provides excellent shear resistance. It is suitable for applications where the fastening must hold under vibrations or light shocks.

Sectors and common uses

• Electronics and cabling: securing enclosures, fixing cable bundles, mounting circuit boards or modules
• Automotive: interior trim, door panel fastening, carpet retention
• Display and signage: frequent mounting and removal of signs, POS displays, communication supports
• General industry: securing light equipment on machinery, assembling protective covers
• Medical and aerospace: mounting components requiring regular maintenance access

The acrylic foam backing of the SJ3542 ensures immediate adhesion on most clean and smooth surfaces, without screws or drilling.

At Dagobert Industrie, we offer this tape to all professionals seeking a reliable and clean alternative to traditional mechanical fasteners.

Application tips and best practices for optimal adhesion

The performance of the Dual Lock™ SJ3542 depends directly on the quality of the application. A few simple precautions make all the difference.

Carefully prepare the surface before any application. Degrease with isopropanol or a suitable cleaner. The surface must be dry, clean, and free of dust or oil.

The ideal application temperature is between 21 °C and 38 °C. Below 10 °C, the acrylic adhesive loses flexibility and initial adhesion drops significantly.

Apply the tape by exerting firm and uniform pressure along the entire length, ideally with an application roller. This ensures complete contact between the adhesive and the substrate.

Allow to rest for at least 72 hours before subjecting the assembly to significant mechanical stress. The acrylic adhesive reaches its full strength gradually.

To interlock the stems, align the two strips face to face and press firmly. A clear click confirms the correct engagement of the mushrooms. Avoid partial engagements, which reduce load capacity.

• Compatible surfaces: steel, aluminum, polycarbonate, ABS, lacquered wood
• Not recommended surfaces: polyethylene (PE), untreated polypropylene (PP), unsealed porous surfaces
• Avoid contact with aggressive solvents after application
• For clean removal, separate the two strips by progressive peeling, never by brutal tearing

FAQ - 3M™ Dual Lock™ Reclosable Fastener SJ3542

1. What is the difference between Dual Lock™ SJ3542 and classic Velcro?

The 3M™ Dual Lock™ SJ3542 does not use hooks and loops like a traditional Velcro. It works with rigid mushroom stems that interlock with each other on two identical sides.

Result: significantly higher shear resistance and a firmer grip, even under vibration or dynamic loading.

2. Is the SJ3542 reusable?

Yes. This is one of the major advantages of this product. The opening/closing cycle can be repeated several hundred times without significant performance loss.

It is ideal for applications where equipment, panels, or covers must be regularly disassembled and reassembled.

3. On what surfaces does the SJ3542 adhere?

The tape backing is equipped with a high-performance acrylic adhesive. It adheres effectively to smooth and clean surfaces: metal, rigid plastic, glass, epoxy paint.

On porous or textured surfaces, adhesion is reduced. A 3M adhesion promoter can improve hold in these cases.

4. How much weight can the SJ3542 support?

The SJ3542 belongs to the 170 stems/cm² density category, giving it good mechanical resistance. It is designed for light to medium applications.

For heavier loads, 3M offers the SJ3550 (400 stems/cm²), which is more suitable for demanding structural fastenings.

5. Is the SJ3542 resistant to humidity and UV?

The polypropylene substrate of the SJ3542 offers good resistance to humidity and common chemicals. It withstands temperatures ranging from -40 °C to +70 °C.

For prolonged outdoor UV exposure, it is recommended to verify compatibility with your specific application or contact us at Dagobert Industrie.

6. Can the SJ3542 be cut to the desired length?

Yes, the tape can be easily cut with scissors or a cutter. No special tools are required.

Remember to align the two strips face to face before cutting if you want perfectly symmetrical pieces.
