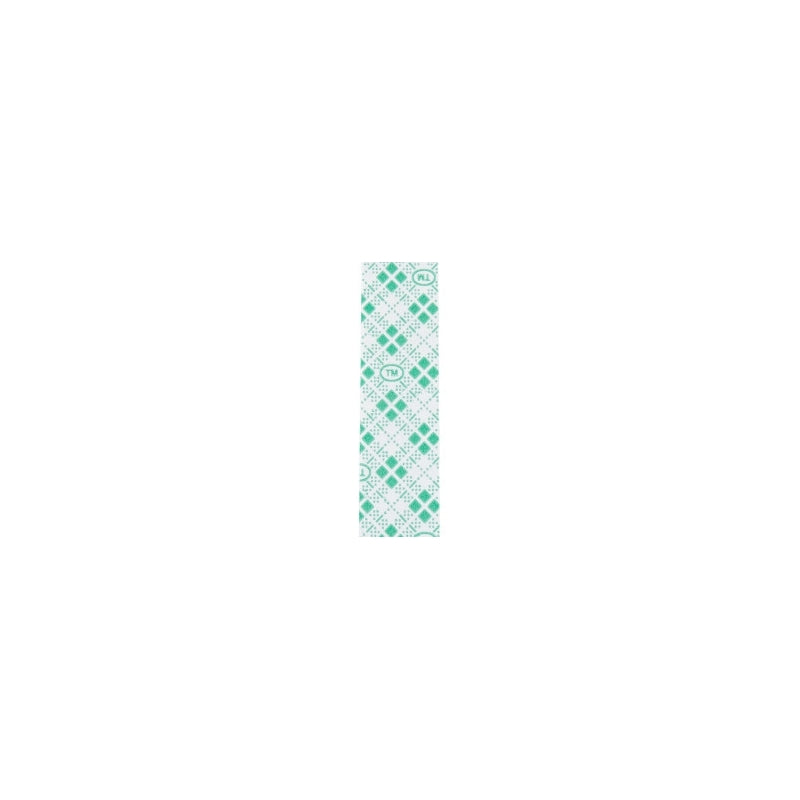

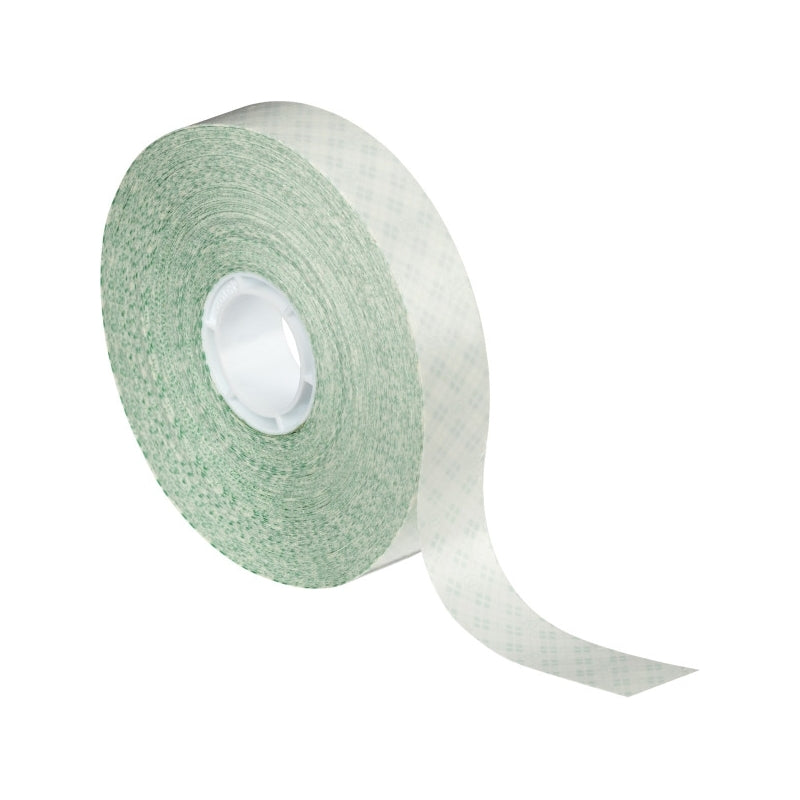

3M™ ATG 924 Adhesive Transfer Tape

3M™ ATG 924 Transfer Tape: unsupported adhesive for precise bonding

The 3M™ ATG 924 Transfer Tape is an unsupported acrylic adhesive designed for clean and precise bonding, without added thickness.

It is applied using an ATG gun and bonds instantly to paper, cardboard, plastic, or metal.

Ideal for graphic, industrial, and assembly applications where joint discretion is essential.

What is 3M™ ATG 924 Transfer Tape?

The 3M™ ATG 924 Transfer Tape is an unsupported double-sided adhesive. It comes as a film of acrylic adhesive transferred onto a silicone liner, with no foam or fabric backing in between.

The result: virtually zero thickness once applied. The joint is invisible, and the bond remains discreet and clean, even on smooth or slightly irregular surfaces.

An unsupported adhesive designed for the ATG 700 applicator

This tape is specifically formulated for use with the 3M™ ATG 700 applicator gun. The liner is automatically removed during application, allowing for fast, precise work without touching the adhesive.

It is a precision tool. It is particularly suitable for applications where consistency of the deposit is essential: photo mounting, framing, graphic arts, and assembly of lightweight parts.

The 924's acrylic adhesive offers a permanent hold on most common substrates: paper, cardboard, plastic, and light metal. It offers good resistance to temperature variations and aging.

• Adhesive type: permanent unsupported acrylic
• Application: 3M™ ATG 700 applicator
• Total thickness: approximately 0.06 mm (adhesive only)
• Compatible substrates: paper, cardboard, plastic, metal, glass
• Typical uses: framing, photography, graphic arts, light industrial assembly

Technical characteristics and properties of the 3M™ ATG 924

The 3M™ ATG 924 is an unsupported adhesive transfer tape. It deposits a thin layer of acrylic adhesive directly onto the surface, with no residual carrier film.

The adhesive is a pressure-sensitive acrylic type. It offers excellent initial adhesion and develops its final strength within a few hours of application.

This tape withstands temperatures ranging from -40 °C to +149 °C in continuous use. It is also resistant to humidity and UV aging, making it reliable in demanding environments.

The deposited adhesive thickness is 0.06 mm. This ultra-thin profile is suitable for assemblies where joint discretion is essential: graphic arts, signage, electronics, bookbinding.

It is designed for use with an ATG (Adhesive Transfer Gun) applicator. The application is fast, clean, and repeatable.

Main features in summary:

• Adhesive type: pressure-sensitive acrylic
• Adhesive thickness: 0.06 mm
• Temperature range: -40 °C to +149 °C
• Backing: none (pure transfer)
• Resistance: humidity, UV, mild solvents
• Application: ATG gun

Product	Adhesive type	Thickness	Max. temp.	Typical use
3M™ ATG 924	Acrylic	0.06 mm	149 °C	Graphics, signage, bookbinding
3M™ ATG 926	Reinforced acrylic	0.13 mm	149 °C	Bonding foam, thick materials
3M™ 467MP	High-performance acrylic	0.06 mm	204 °C	Electronics, difficult surfaces
Tesa 4965	Acrylic	0.10 mm	150 °C	Light industrial assembly

Applications and fields of use for the ATG 924 tape

The 3M™ ATG 924 transfer tape is designed for clean, precise, and visually thickness-free bonding. Its unsupported acrylic adhesive makes it ideal wherever an invisible and resistant joint is desired.

Bonding paper, cardboard, and lightweight materials

The 924 excels on lightweight and porous substrates. It bonds without wrinkling, without staining, and without solvents.

In printing and graphic arts, it is used to assemble proofs, mount films, or attach model elements. The result is clean, initially repositionable, and then permanent.

In packaging and cardboard manufacturing, it allows for closing boxes, attaching labels, or assembling dividers. No traces, no overflow.

It is also widely used in light signage: fixing tracing paper, paper templates, or flexible PVC supports onto flat surfaces.

Other common applications:

• Mounting photos and archival documents
• Assembly of light foams and non-wovens
• Fixing decorative ribbons or textile borders
• Bonding transparent plastic films

The ATG 924 is used with an ATG gun (such as the 3M™ ATG 700), which guarantees uniform application without direct contact with the adhesive, a real time-saver in production.

Comparison: ATG 924 versus other tapes in the 3M™ ATG range

The 3M™ ATG (Adhesive Transfer Gun) range includes several unsupported tapes, each designed for a specific level of performance. The ATG 924 occupies a central position: higher performance than the entry-level options, without reaching the ultra-high adhesion formulations.

Here is how it compares to other references in the range.

Comparison table for 3M™ ATG 904, 924, 926, 928, 969, and 976 transfer tapes

Reference	Adhesive thickness	Adhesive type	Initial adhesion	Typical applications
ATG 904	50 µm	Acrylic	Low to medium	Light mounting, paper, cardboard
ATG 924	60 µm	Acrylic	Medium to high	Industrial assembly, graphics, smooth surfaces
ATG 926	130 µm	Acrylic	High	Irregular surfaces, light structural bonding
ATG 928	200 µm	High-performance acrylic	Very high	Rough surfaces, demanding applications
ATG 969	130 µm	Synthetic rubber	High, fast tack	Paper, packaging, cold bonding
ATG 976	250 µm	Ultra-high performance acrylic	Very high	Metals, plastics, heavy loads

The ATG 924 is distinguished by its balance between application precision and reliable adhesion. It is suitable for smooth or slightly textured surfaces, without over-sizing the adhesive.

If your surface is rough or porous, the ATG 926 or 928 will be more suitable. For very heavy loads on metal or plastic, the ATG 976 takes over.

At Dagobert Industrie, we list several tapes from this range to allow you to choose the right adhesive thickness based on your actual application.

Usage tips and best practices for the 3M™ ATG 924

The 3M™ ATG 924 is an unsupported transfer adhesive applied via an ATG gun. To achieve optimal bonding, a few simple rules must be followed.

Always prepare surfaces before application. They must be clean, dry, and degreased. A contaminated surface significantly reduces final bond strength.

Apply firm and uniform pressure after placing the tape. Rolling with a 2 to 3 kg/cm roller improves intimate contact between the adhesive and the substrate, and fully activates the bonding power.

Observe the application temperature: ideally between 18 °C and 40 °C. Below 10 °C, the adhesive becomes less flowable and the initial bond is weakened.

Allow for an adhesion build-up time of 24 to 72 hours before intensive mechanical stress. Final resistance is not reached immediately after application.

The 3M™ ATG 924 is particularly suitable for low surface energy substrates like certain plastics. If in doubt, perform a preliminary bond test on a representative sample.

Store unopened rolls away from light, in a cool, dry place. Storage conditions directly influence the adhesive's shelf life.

Product	Adhesive thickness	Adhesion force	Recommended substrates	Typical use
3M™ ATG 924	0.06 mm	High	Paper, cardboard, plastics, metal	Graphic mounting, labeling, light assembly
3M™ ATG 928	0.13 mm	Very high	Rough surfaces, foams	Industrial assembly, gaskets, panel fixing
3M™ 467MP	0.06 mm	High	Plastics, metals, glass	Electronics, medical, precision bonding
Tesa 4965	0.05 mm	High	Smooth surfaces, glass, metal	Signage, displays, fine assembly

FAQ - 3M™ ATG 924 Transfer Tape

1. What is a transfer tape and how is the ATG 924 different from a conventional double-sided tape?

A transfer tape has no film or foam backing: it consists solely of a layer of acrylic adhesive deposited on a silicone liner.

Once applied, the glue line is virtually invisible and ultra-thin. This is what distinguishes the ATG 924 from standard double-sided tape, which leaves a perceptible thickness between the two surfaces.

2. To which materials does the 3M™ ATG 924 adhere properly?

It bonds effectively to papers, cardboards, plastic films, metals, and painted surfaces provided they are clean and dry.

It is less suitable for low surface energy materials like polypropylene or PTFE, which require specially formulated adhesives.

3. Can the 3M™ ATG 924 be applied manually or is an ATG gun necessary?

The ATG 924 is designed to be used with a 3M ATG applicator gun (such as the 700 or 752 model). This tool handles the liner automatically during application.

Manual application is technically possible but tedious: the thin liner is difficult to remove without a dedicated tool, especially over long lengths.

4. What are the typical applications for the 3M™ ATG 924?

It is widely used in graphic arts, signage, bookbinding, and document mounting. Its clean, consistent glue line makes it a favorite among paper finishing professionals.

It is also found in light label assembly, photo fixing, and under-glass mounting, wherever the aesthetics of the bond count as much as its strength.

5. What is the thermal resistance of the 3M™ ATG 924?

The acrylic adhesive of the ATG 924 withstands temperatures ranging from approximately -40 °C to +93 °C in continuous use.

For high-temperature environments or prolonged heat exposure, tapes such as the 3M™ ATG 969 (high-performance adhesive) would be more appropriate.

6. Is the 3M™ ATG 924 repositionable after application?

No. Once the two surfaces are pressed together, the bond is permanent and not repositionable. Parts must be positioned carefully before contact.

If a repositionable bond is needed, there are low-tack adhesive transfer tapes specially designed for this purpose.
