3M™ 471 Vinyl Tape

3M™ 471 Vinyl Tape: Features, Applications, and Performance

3M™ 471 Vinyl Tape is an essential benchmark for floor marking, visual identification, and surface protection in industrial environments.

Its flexible vinyl backing resists abrasion, oils, and repeated foot traffic, even in demanding environments.

Available in several colors and widths, it adapts to the strictest safety and signaling standards.

Presentation of 3M™ 471 Vinyl Tape

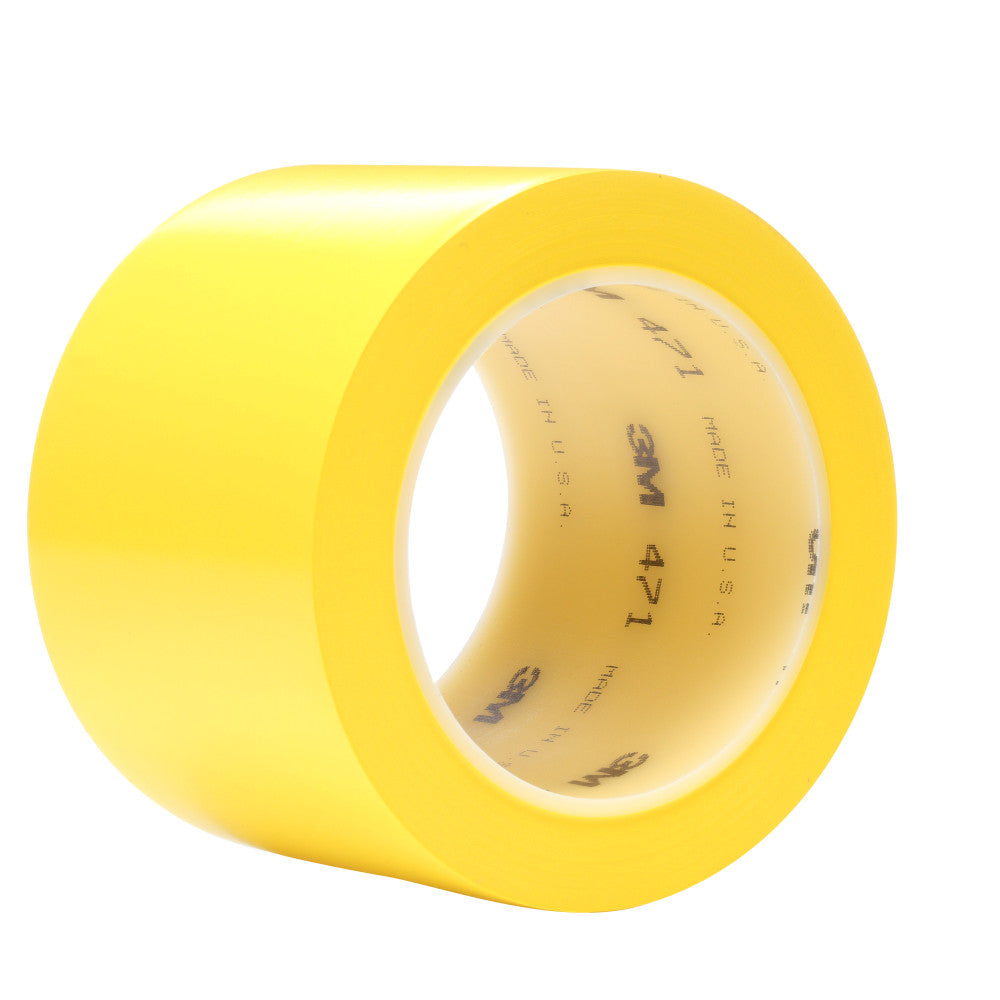

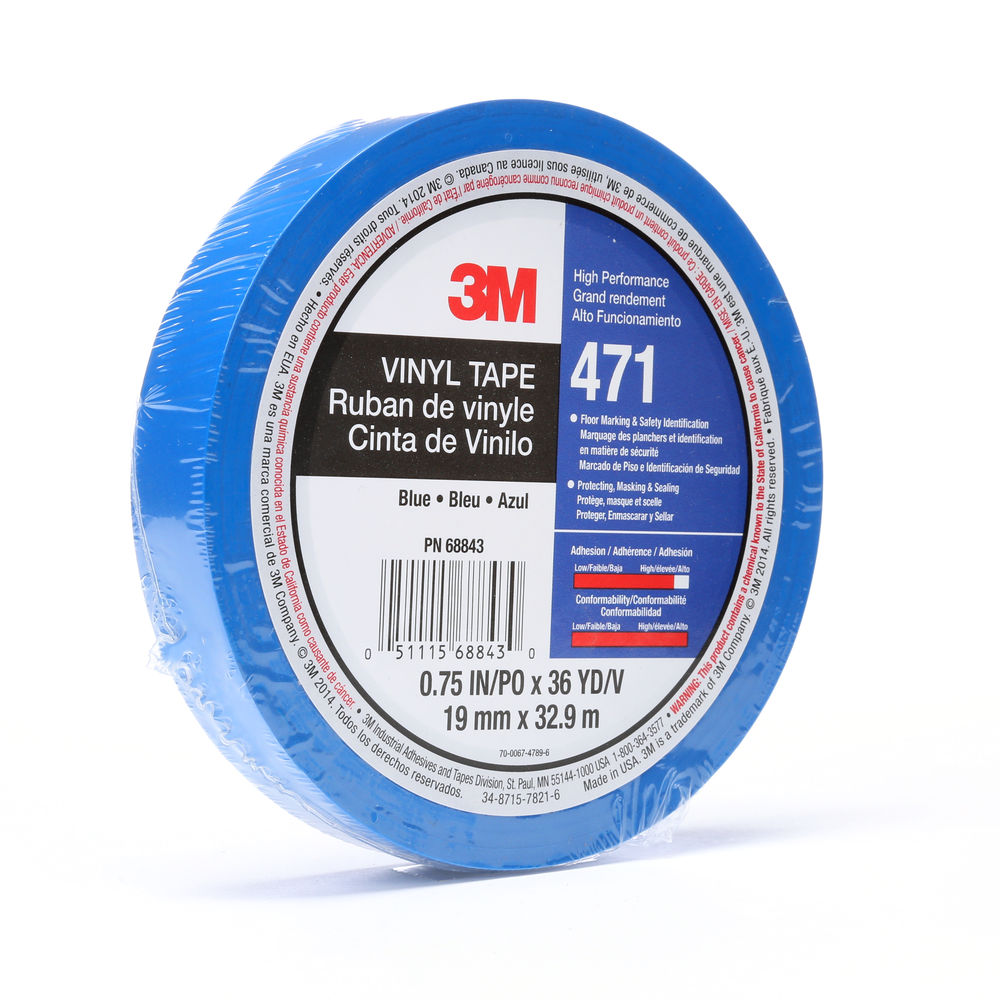

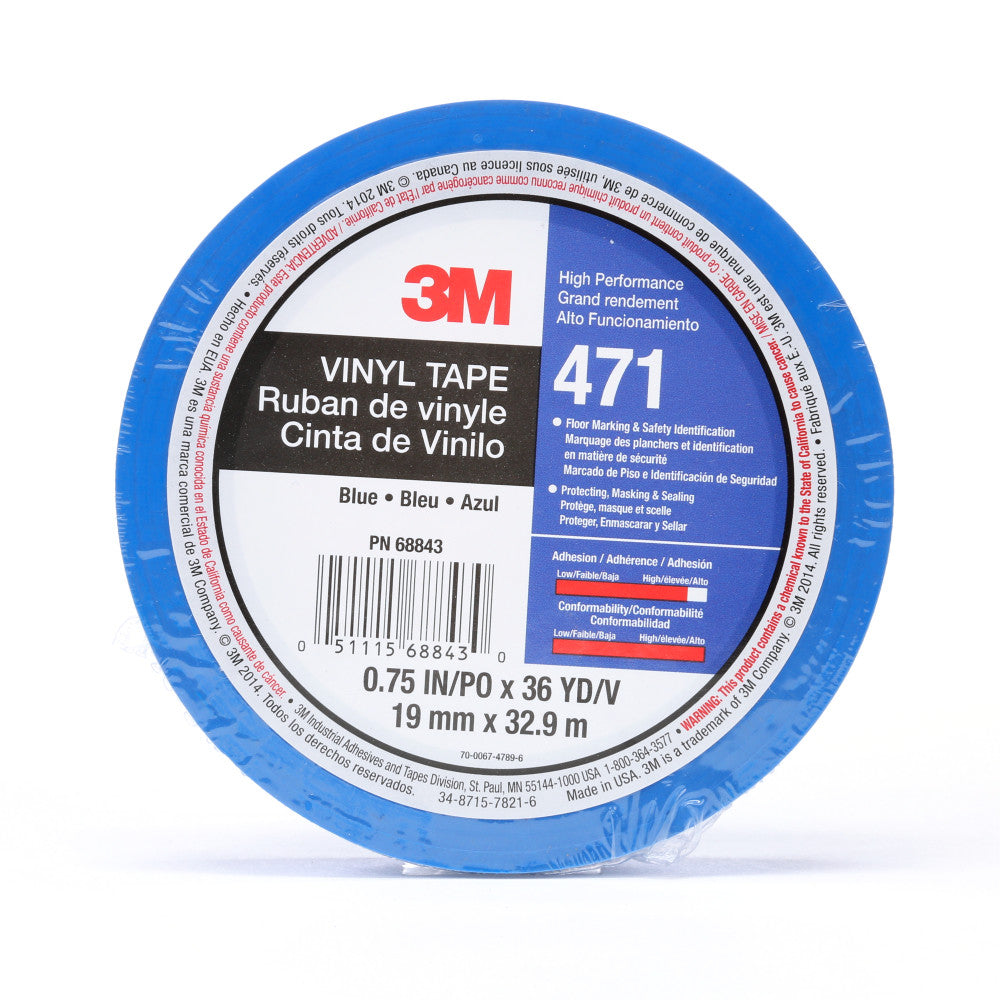

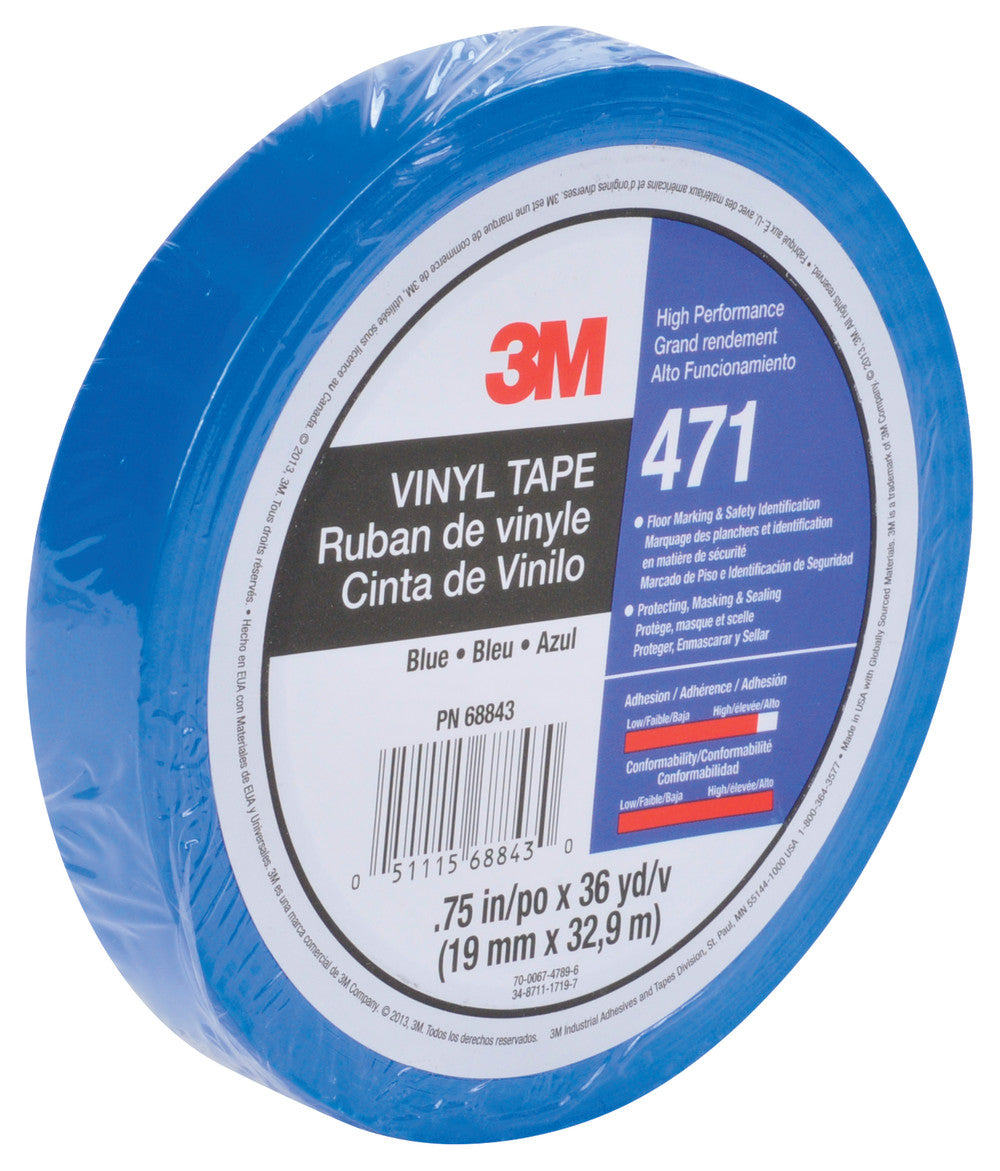

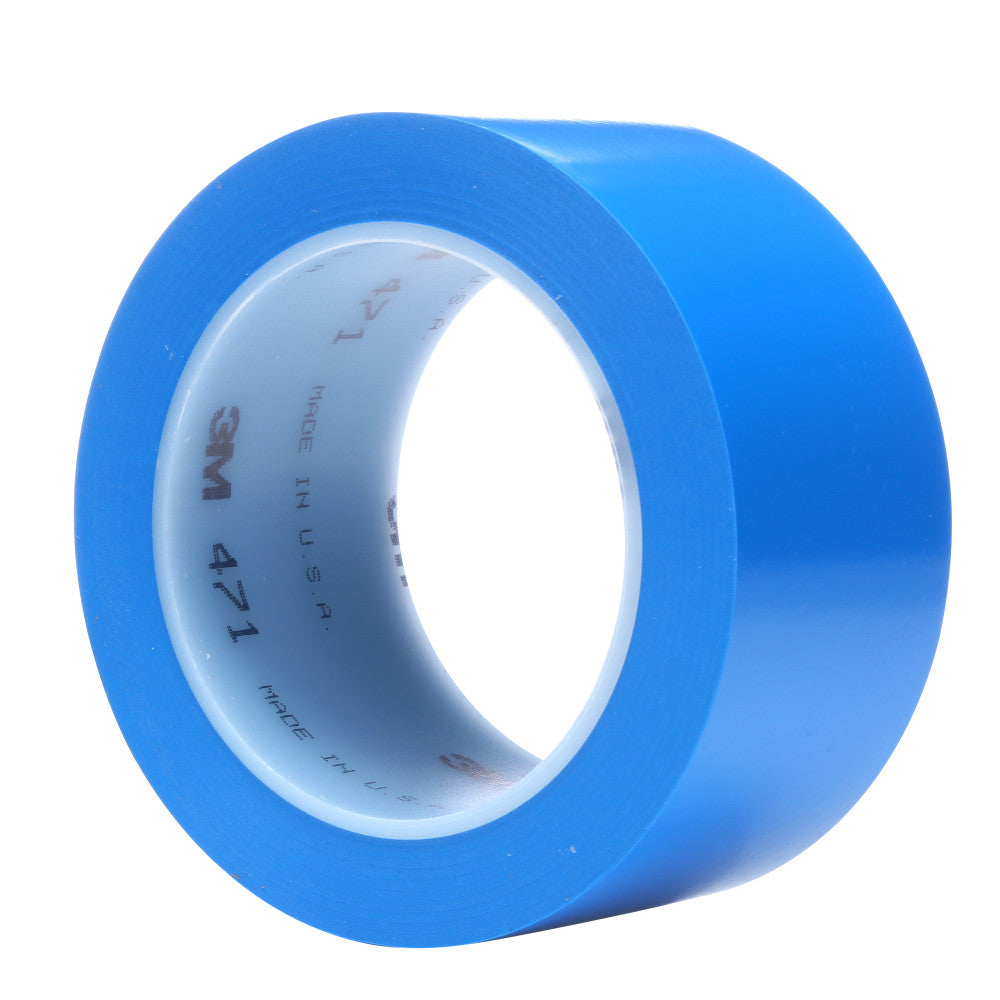

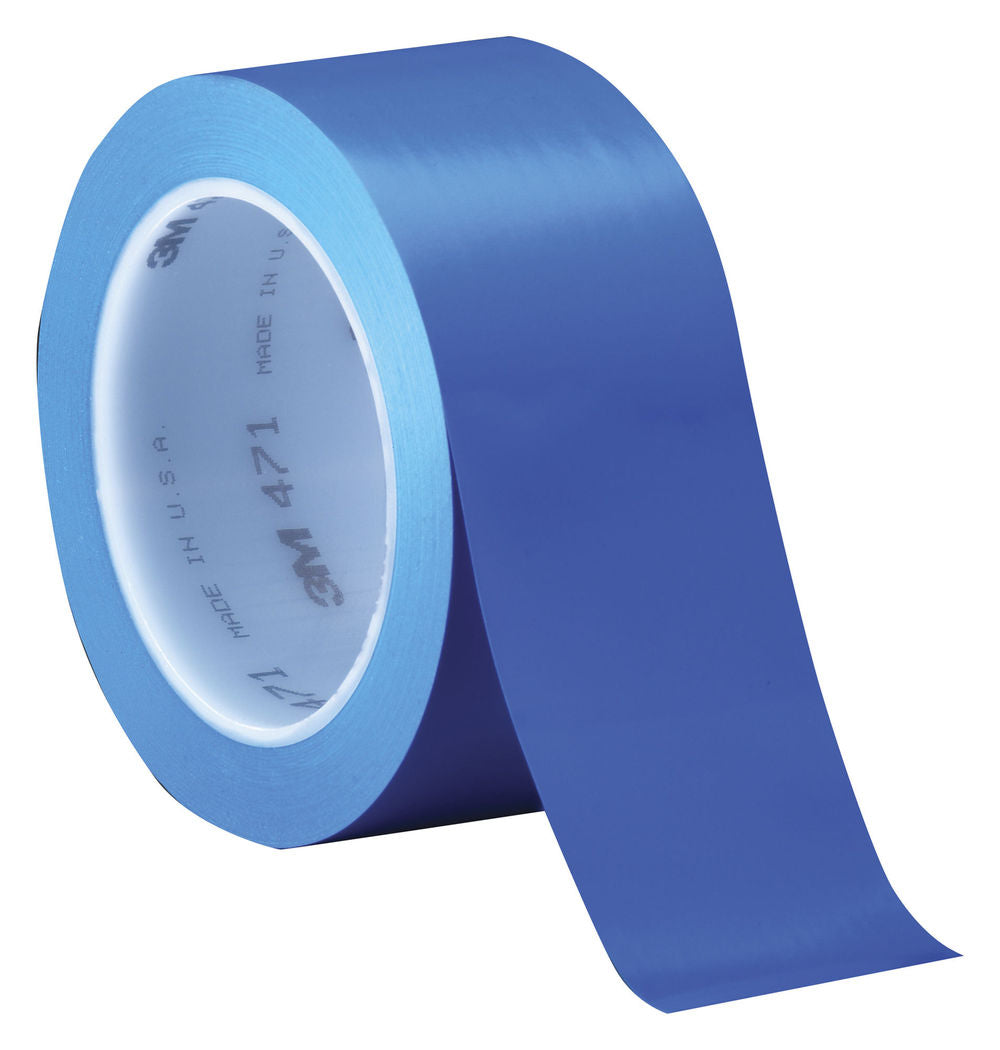

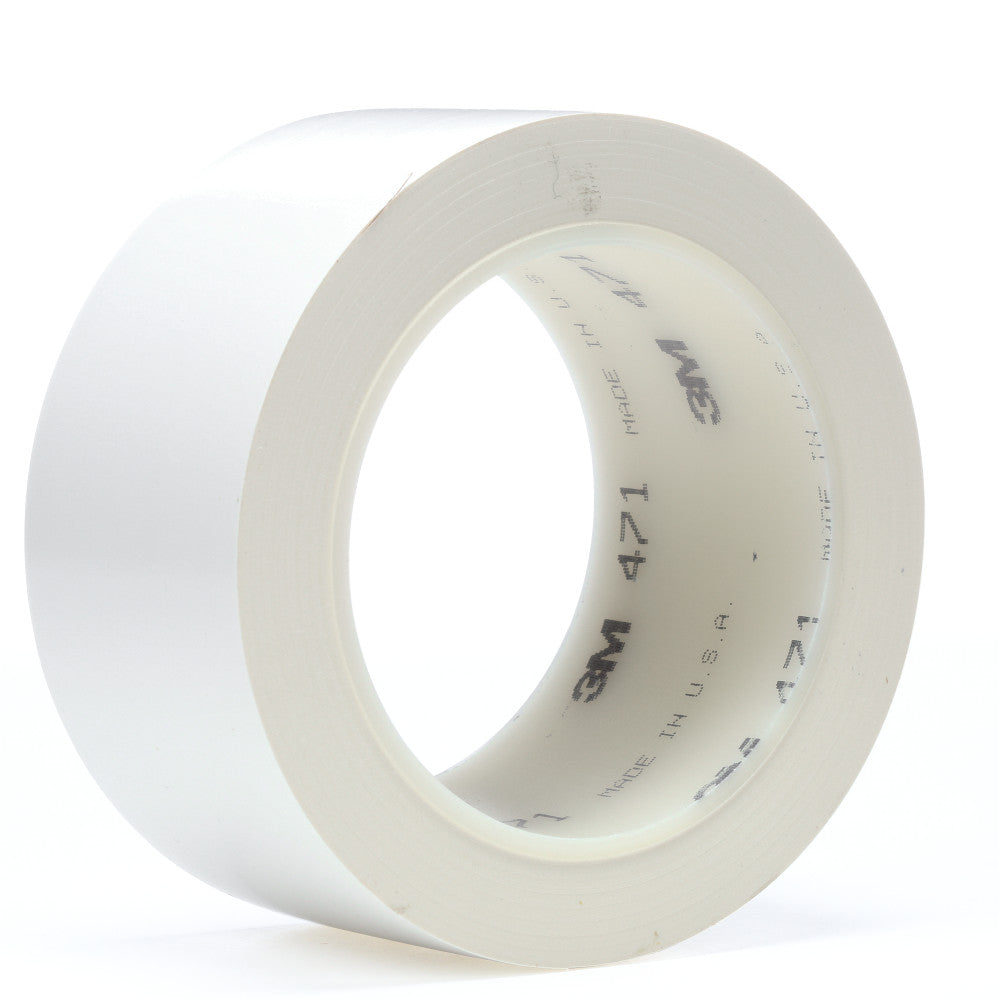

3M™ 471 Vinyl Tape is a floor marking and lane-delineation tape, designed for use in demanding industrial settings.

It is available in a wide range of vibrant colors, making it an essential tool for 5S marking, safety signaling, and workplace organization.

At Dagobert Industrie, we offer this tape as a reliable solution for environments subject to pedestrian traffic and forklift movement.

Composition and structure of 3M 471 tape

The 3M™ 471 features a flexible vinyl film structure combined with a high-performance acrylic adhesive. This combination provides both mechanical resistance and conformability on irregular surfaces.

Its acrylic adhesive ensures long-lasting hold without leaving residue upon removal, provided that the recommended application times and temperatures are respected.

Here are the key structural characteristics:

• Backing: 0.13 mm thick flexible PVC film
• Adhesive: Pressure-sensitive acrylic
• Total thickness: Approximately 0.21 mm
• Temperature resistance: -10 °C to +82 °C
• Surface: Matte finish, reducing glare

The flexibility of the vinyl backing allows the tape to be wrapped around corners and edges without peeling or tearing, which is a concrete advantage over painted markings.

Technical properties and performance of 3M™ 471

The 3M™ 471 is a flexible vinyl adhesive tape designed for floor marking, zone delineation, and industrial identification. Its flexible PVC backing provides excellent conformability on irregular surfaces.
It is available in several vibrant colors, including yellow, red, white, and black, making it a must-have for 5S signaling and workshop safety.

Mechanical, thermal, and chemical resistance

The 3M™ 471 offers a good balance between rigidity and flexibility. It resists repeated pedestrian traffic and light carts without peeling or tearing.
Its thermal resistance ranges from -10 °C to +60 °C in continuous use, covering most indoor industrial environments. It is not designed for high-temperature applications.
Chemically, it withstands light splashes of oils, fuels, and common solvents. For severe chemical exposure, a PTFE or polyester tape will be more suitable.

Characteristic	3M™ 471 (PVC)	3M™ 5702 (Polyester)	3M™ 401+ (Paper)
Backing	Flexible PVC	Polyester	Crepe Paper
Max. Temperature	60 °C	150 °C	80 °C
Chemical Resistance	Moderate	High	Low
Conformability	Excellent	Low	Good
Primary Use	Floor Marking / 5S	High-temp. Masking	Paint Masking

The 3M™ 471 clearly stands out for conformability and visual marking. For more severe thermal or chemical constraints, other 3M references take over.

Applications and fields of use for 3M™ 471 vinyl tape

3M™ 471 vinyl tape is designed for floor marking, zone delineation, and industrial marking. It adapts to a wide variety of environments.

Its flexible vinyl construction allows it to conform to surface irregularities. It resists frequent traffic, forklifts, and repeated friction.

Here are its main fields of application:

• Floor marking in warehouses, workshops, and logistics zones
• Delineation of traffic lanes and safety zones (5S, lean manufacturing)
• Identification of machines, equipment, and workstations
• Temporary masking for industrial painting and bodywork
• Color coding of pipes and cables
• Light interior decoration and signaling

It adheres to concrete, tile, painted metal, wood, and most smooth surfaces. Proper surface preparation remains necessary to ensure long-term hold.

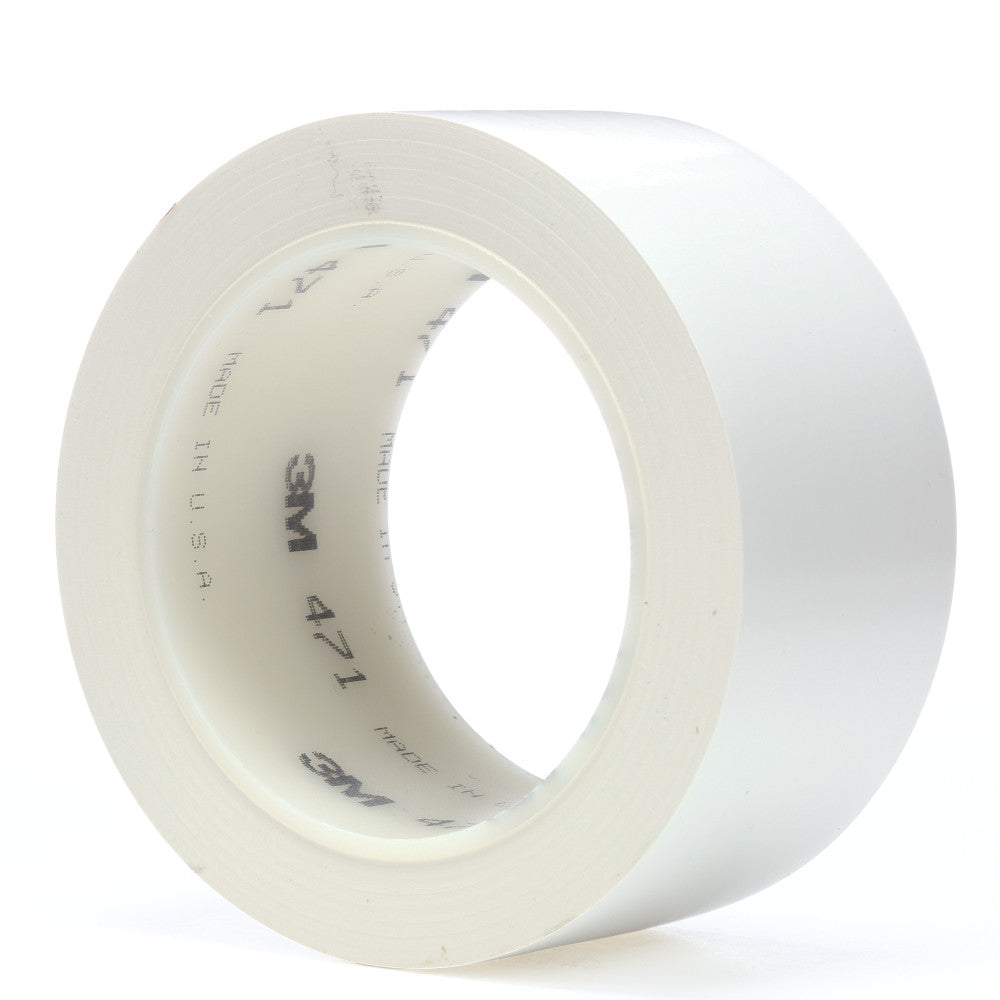

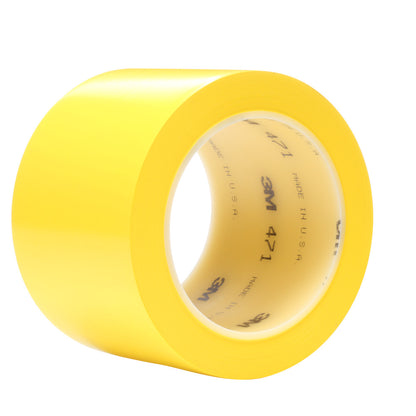

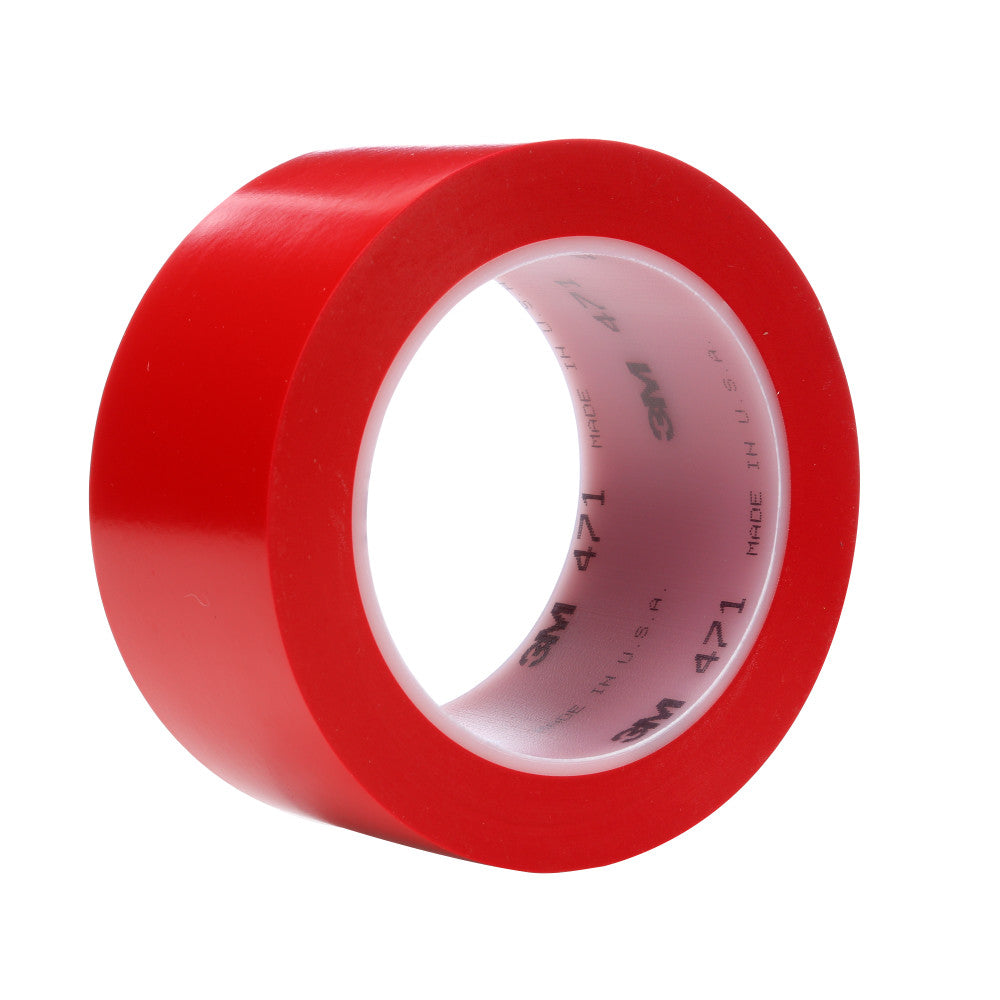

The 3M™ 471 is available in several standardized colors, including yellow, red, white, and black. This facilitates the implementation of color codes compliant with current safety standards.

Product	Material	Primary Use	Traffic Resistance	Thickness
3M™ 471	Flexible Vinyl	Floor marking, marking, masking	High	0.14 mm
3M™ 764	Flexible Vinyl	General purpose floor marking	Medium	0.13 mm
3M™ 481	Flexible Vinyl	High-precision paint masking	Low	0.14 mm
Brady B-514	Vinyl	Floor marking and safety	High	0.18 mm

Comparison: 3M™ 471 tape vs. similar products on the market

3M™ 471 vinyl tape is often compared to other marking and masking tapes. Here is how it positions itself in practice.

Product	Material	Temp. Resistance	Abrasion Resistance	Primary Use
3M™ 471	Flexible Vinyl	Up to 60 °C	High	Floor marking, delineation, light masking
3M™ 764	Flexible Vinyl	Up to 60 °C	Medium	Indoor floor marking, economy use
3M™ 5S Red Line	Reinforced Vinyl	Up to 60 °C	Very high	Heavy traffic floor marking, heavy industry
Tesa 60760	Flexible Vinyl	Up to 55 °C	Medium	Floor marking, workshop signage
Brady B-514	Rigid Vinyl	Up to 65 °C	High	Industrial labeling, traceability

Compared to 3M™ 764, the 471 offers better abrasion resistance and more durable hold under pedestrian traffic and light carts. The 764 remains an economical option for less demanding areas.

The 3M™ 5S Red Line exceeds the 471 in raw robustness. It is designed for high-traffic environments with forklift traffic. The 471 remains sufficient for most standard workshops.

Regarding the Tesa 60760, performance is close, but the range of available colors is more limited. The 3M™ 471 offers a broader palette, useful for 5S color coding.

In summary: 3M™ 471 offers the best balance between durability, ease of application, and color versatility for common industrial use.

Application tips and best practices

Careful application makes the difference between marking that lasts several years and tape that peels off in a few weeks.

Always prepare the surface before application. It must be clean, dry, and degreased. A cloth soaked in isopropanol is sufficient in most cases.

The ideal application temperature is between 10 °C and 38 °C. Below this, the adhesive hardens and initial adhesion drops significantly.

Apply the tape by unrolling it gradually, without stretching the vinyl. An application roller or squeegee ensures uniform contact and eliminates air bubbles.

For corners and clean cuts, use a box cutter with a new blade. 3M™ 471 vinyl tape cuts cleanly without fraying thanks to its flexible PVC construction.

Allow the tape to adhere for at least 24 hours before subjecting it to significant mechanical stress (heavy pedestrian traffic, forklifts...).

For removal, lightly heat the tape with a heat gun set to low temperature. The vinyl will then peel off without residue on most industrial surfaces.

• Clean and degreased surface before application
• Ambient temperature above 10 °C
• Uniform pressure with roller or squeegee
• 24-hour waiting period before loading
• Removal facilitated by light heat

FAQ - 3M™ 471 Vinyl Tape

1. What is the difference between 3M™ 471 and 3M™ 764?

3M™ 471 is a high-performance vinyl tape designed for demanding environments: it better resists chemicals, abrasion, and high temperatures. 3M™ 764 is an economical version, suitable for less demanding indoor markings.

2. Does 3M™ 471 tape stick to damp or oily floors?

No. Like any adhesive tape, it requires a clean, dry, and degreased substrate for optimal adhesion. On a contaminated floor, hold will be significantly reduced, regardless of the product used.

3. Can it be used outdoors?

Yes. 3M™ 471 tape withstands exposure to UV, moisture, and temperature variations. It is suitable for short to medium-term outdoor marking, but a well-prepared surface remains essential.

4. Is it easy to remove without leaving residue?

3M™ 471 is formulated to remove cleanly, without leaving glue on the substrate, provided the recommended deadlines are met. The longer it stays in place, the more difficult removal can become, especially under high heat.

5. Which colors are available?

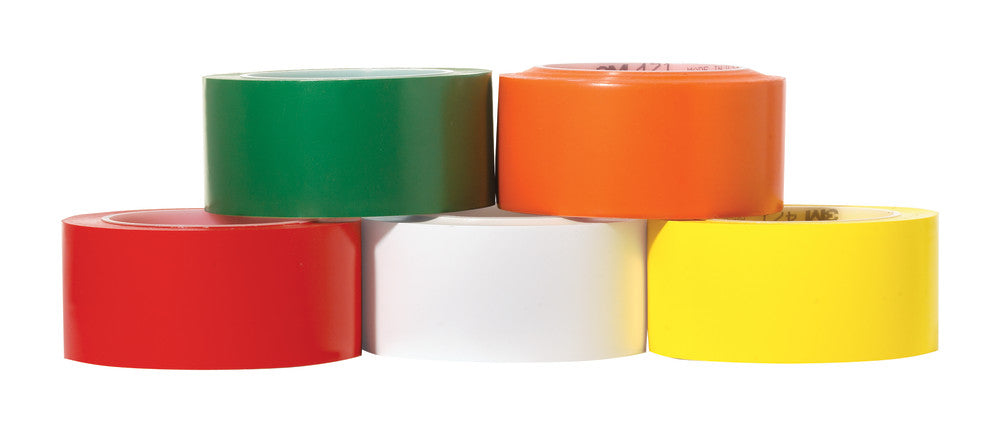

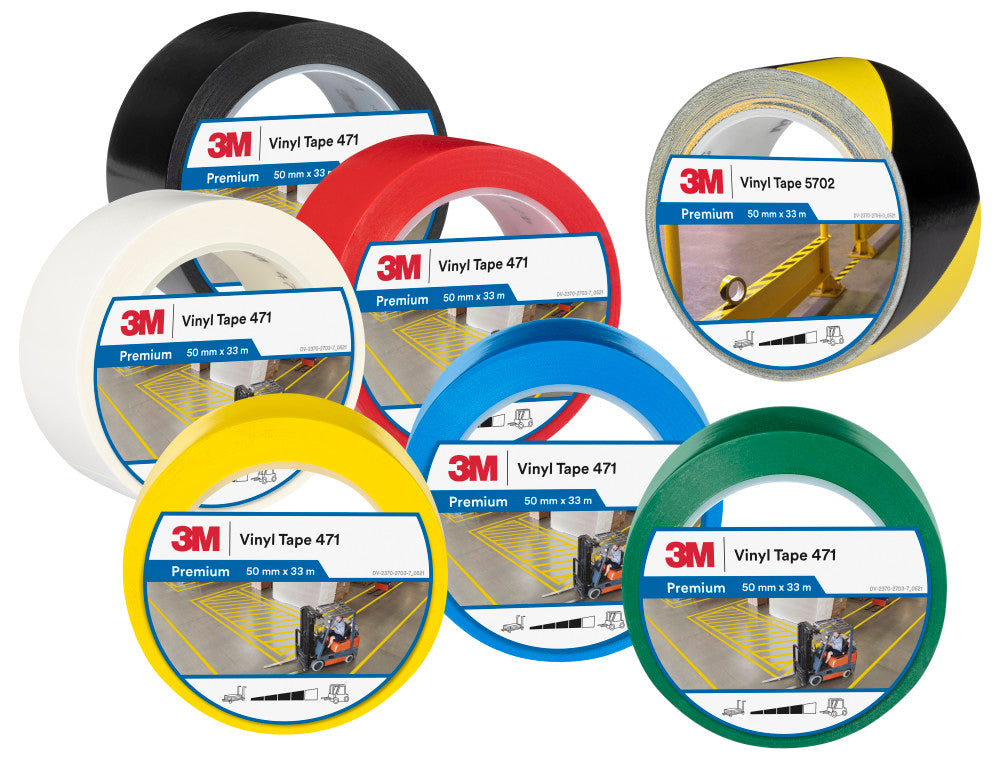

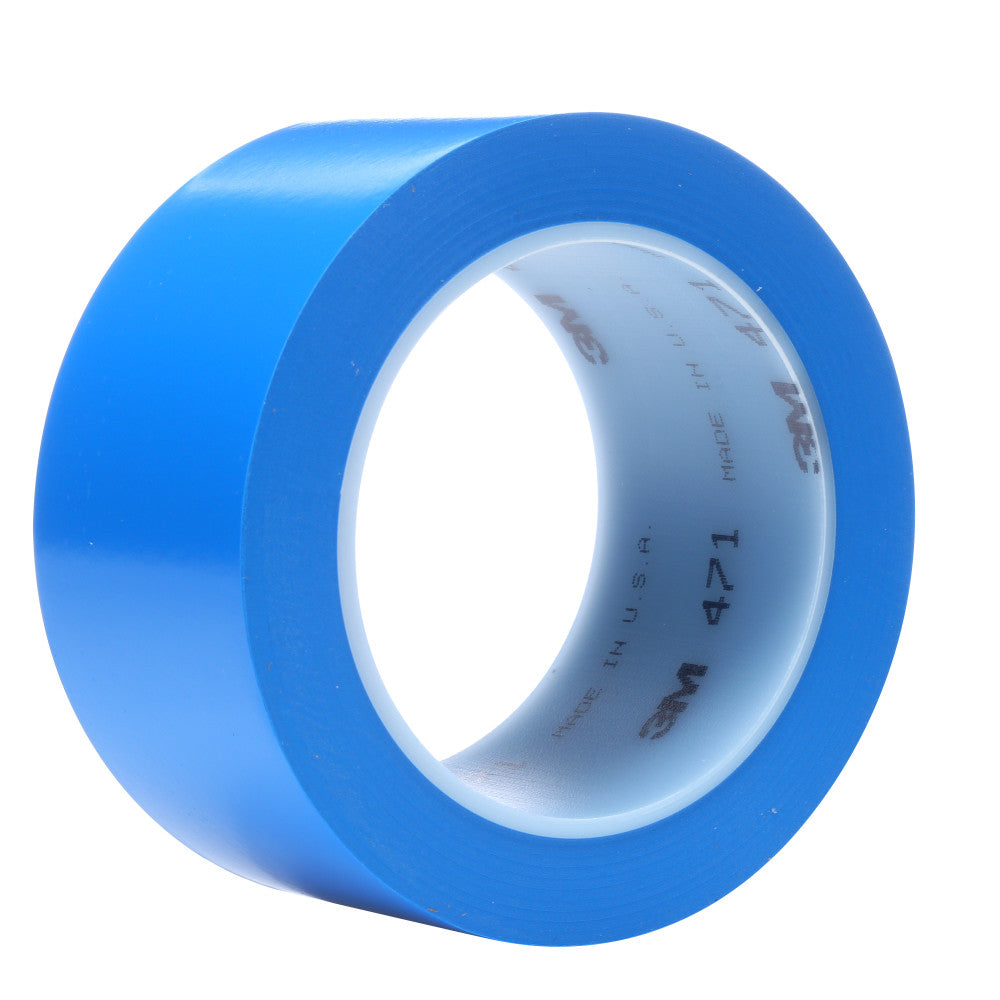

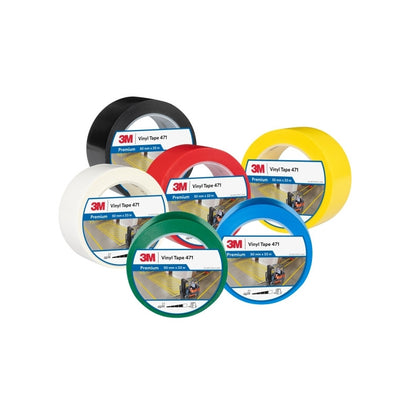

3M™ 471 is available in a wide range of colors: yellow, red, white, blue, green, black, orange, and other shades. This facilitates color-coded floor marking, particularly for pedestrian walkways, danger zones, or production lines.

6. What is the maximum temperature supported in continuous use?

3M™ 471 tape supports continuous use up to approximately 60 °C, with peaks tolerated at slightly higher temperatures for short durations. Beyond that, the adhesive may soften and hold will degrade.
