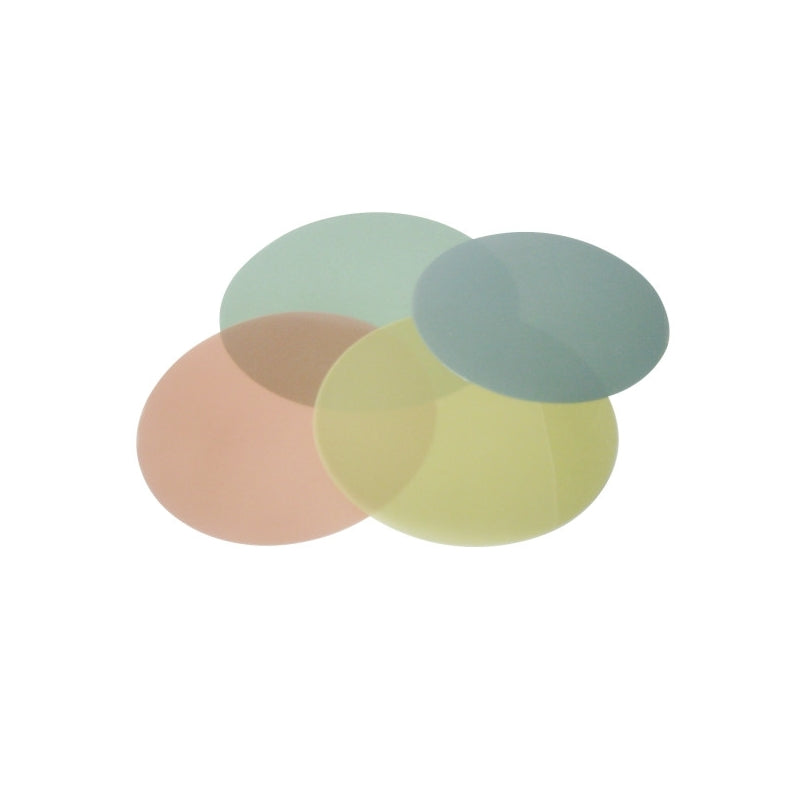

3M™ 468XW Lapping Film Disc

3M 468XW is a 127 mm lapping film disc in 3 µm grade. This precision abrasive film, on a polyester backing, is used for fine polishing and high-precision finishing, particularly in fibre optics.

Specifications

• Backing: polyester film.
• Grade: 3 µm.
• Diameter: 127 mm.

The 3 µm grade

At 3 µm, you are into fine finishing: the film removes the scratches left by 9 or 12 µm grades and prepares the final polishing step, at 1 µm or below. The scratch produced is too fine to be seen with the naked eye, but still visible under a microscope on an optical face.

Why a lapping film

The grains of a lapping film are sorted to a very tight tolerance and spread in an even layer on a flat film. No out-of-size grain scratches the surface: the finish is even and repeatable from one part to the next, which is essential on a fibre connector or a metrology part.

Application

Lay the disc on a flat, clean platen; dust under the film creates a high spot. Work with the lubricant recommended for the application. Clean the part thoroughly before moving to the next grade.
