3M™ 3792 Hot Melt Adhesive

3M 3792 Hot Melt Adhesive: features, applications, and performance

The 3M 3792 hot melt adhesive is a benchmark for demanding bonding applications in industrial environments. It offers versatile adhesion on a wide range of materials: plastics, wood, textiles, and metals.

Its high-performance formula ensures rapid setting and a durable hold, even under mechanical or thermal stress conditions.

Available at Dagobert Industrie, this 3M glue stick is used with compatible high-temperature glue guns.

Presentation of the 3M 3792 hot melt adhesive

The 3M 3792 hot melt adhesive is a versatile ethylene-vinyl acetate (EVA)-based adhesive. It is designed for industrial and craft applications requiring a fast and strong bond.

It is applied using a high-temperature glue gun, with an operating temperature around 190 °C. The set time is fast, which reduces cycle times in production.

The 3792 adheres to a wide spectrum of materials: wood, cardboard, fabrics, plastics, foams, ceramics, and many porous substrates. It is one of the most frequently used references in workshops.

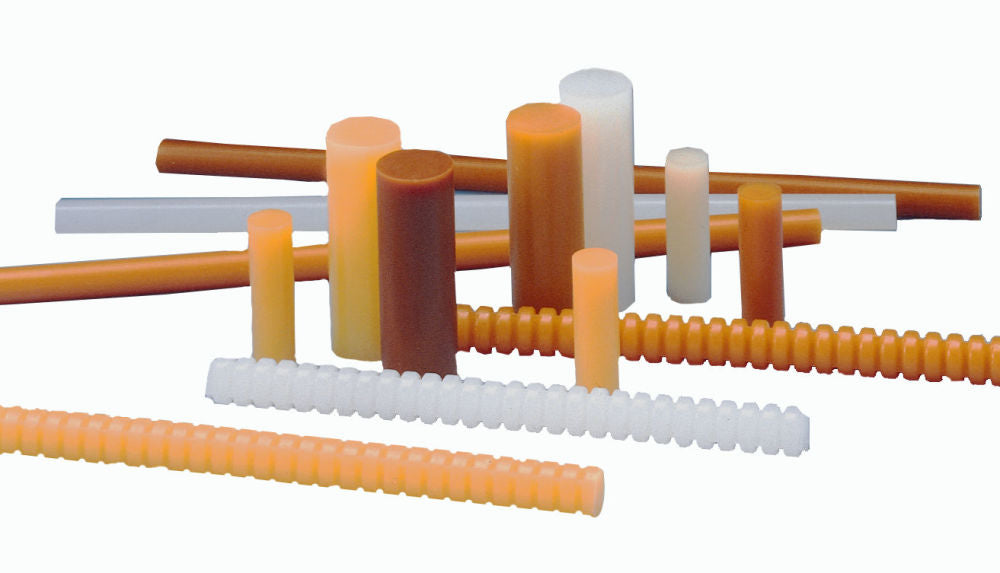

Available variants: 3792 Q, 3792 LMQ, and stick formats

The 3792 range comes in several variants to adapt to the constraints of each application.

• 3792 standard: classic high-temperature formulation, general use
• 3792 Q: reduced open time for even faster setting, ideal for high production rates
• 3792 LMQ: low melt version, suitable for heat-sensitive materials such as thin foams or delicate textiles

These variants are available in 12 mm or 43 mm diameter sticks depending on the gun used. The 43 mm format is suitable for high-output industrial glue guns.

Reference	Application temperature	Open time	Main use
3M 3792	~190 °C	Standard	General use, multi-material
3M 3792 Q	~190 °C	Short	High rates, series production
3M 3792 LMQ	~135 °C	Short	Heat-sensitive materials
Bostik Thermogrip HM 4006	~180 °C	Standard	Packaging, cardboard
Henkel Technomelt PA 6208	~200 °C	Long	Wood assembly, joinery

Technical properties and typical characteristics

The 3M 3792 hot melt adhesive is formulated based on ethylene-vinyl acetate (EVA). It is a stick adhesive compatible with standard 12 mm nozzle glue guns.

It is applied at a melting temperature of approximately 190 °C. The open time is short, on the order of a few seconds, which requires rapid positioning of the parts.

Its service temperature resistance is adequate for typical indoor applications, up to approximately 60-65 °C. Beyond that, the bond may soften under load.

Main properties:

• High hot viscosity: good filling of gaps and surface irregularities
• Wide-spectrum adhesion: wood, cardboard, foam, fabric, certain plastics
• Fast cooling, sets in a few seconds
• Reduced glue stringing thanks to 3M formulation
• Compatible with 3M Scotch-Weld PG II gun and market equivalents

To better place this product, here is a comparison with other common hot melt adhesives:

Product	Manufacturer	Chemical base	App. temp.	Heat resistance	Typical applications
3792	3M	EVA	~190 °C	up to ~65 °C	Wood, cardboard, fabric, foam
3M 3748	3M	High-perf. EVA	~190 °C	up to ~82 °C	Difficult plastics, light metal
Technomelt AS 6200	Henkel	EVA	~180 °C	up to ~60 °C	Packaging, cardboard
Jet Melt 3764	3M	Low-temp EVA	~150 °C	up to ~50 °C	Heat-sensitive materials

The 3M 3792 stands out for its balance between ease of application and versatility. It is suitable for a wide variety of porous and semi-porous substrates in a general assembly or craft context.

Applications and compatible materials with the 3M 3792

The 3M 3792 hot melt adhesive is a versatile ethylene-vinyl acetate (EVA)-based adhesive. It is suitable for a wide range of materials and industrial sectors.

It adheres effectively to porous and semi-porous surfaces: wood, cardboard, paper, fabric, foam, and certain plastics. It is a common choice in light assembly and packaging.

In industry, it is used for bonding wood components, fixing insulation, assembling decorative parts, or cartoning. It is also very widespread in crafts and the manufacture of displays.

Compatible materials:

• Wood and derivatives (MDF, plywood)
• Cardboard and paper
• Foams and textiles
• Certain plastics (PP and PE that are difficult to bond)
• Ceramics and glass (light applications)

The 3792 is distinguished by a high viscosity at 190 °C, which gives it good application control and limits filamenting. It is compatible with standard 12 mm glue guns.

Product	Manufacturer	Application temperature	Chemical base	Main use
3M 3792	3M	190 °C	EVA	General use, wood, cardboard, textile
3M 3748	3M	177 °C	EVA	Heat-sensitive materials
3M 3779	3M	190 °C	EVA	Plastics and smooth surfaces
Henkel Technomelt PA 648	Henkel	180-200 °C	Polyamide	High-performance applications, metals

If your application involves heat-sensitive materials or difficult plastics, 3M 3748 or 3M 3779 may be more suitable. At Dagobert Industrie, we offer the entire 3M range to enable you to choose the right product.

Comparison: 3M 3792 vs. other hot melt adhesives on the market

The 3M 3792 hot melt adhesive stands out in a very crowded market. To help you choose, here is how it positions itself against common references.

Comparative table of the main industrial hot melt adhesives

Product	Manufacturer	Application temperature	Open time	Heat resistance	Typical applications
3792	3M	190 °C (high temperature)	Short (~30 s)	Up to 82 °C	Multi-material assembly, wood, plastics, textiles
Technomelt PA 668	Henkel / Loctite	180-200 °C	Medium (~45 s)	Up to 80 °C	Packaging, bookbinding, light assembly
Jet Melt 3748	3M	177 °C (low temperature)	Short (~25 s)	Up to 55 °C	Heat-sensitive materials, foams, polystyrene
Technomelt AS 2017	Henkel / Loctite	160-180 °C	Long (~60 s)	Up to 60 °C	Wood assembly, panels, joinery
Bostik 1615	Bostik	180 °C	Medium (~40 s)	Up to 70 °C	Footwear, leather goods, technical textile

The 3M 3792 stands out for its high heat resistance and versatility on varied substrates.

Unlike the 3M 3748, designed for fragile materials, the 3792 is suitable for assemblies requiring a durable mechanical hold at higher temperatures.

Compared to Henkel references, it offers a shorter open time, an advantage in rapid production, where every second counts.

At Dagobert Industrie, we recommend the 3M 3792 for industrial applications requiring reliable bonding on heterogeneous materials, without compromise on final strength.

Instructions for use and implementation precautions

The 3M 3792 hot melt adhesive is used with a high-temperature glue gun, compatible with 12 mm diameter sticks. Check the compatibility of your gun before any use.

The recommended working temperature is between 150 °C and 170 °C. Working outside this range reduces adhesion and can damage heat-sensitive substrates.

Before bonding, surfaces must be clean, dry, and degreased. Any trace of oil, dust, or moisture compromises the final integrity of the bond.

The open time is short, approximately 30 to 60 seconds depending on ambient temperature. Assemble parts immediately after application to ensure good contact.

Apply uniform pressure for at least 30 seconds after assembly. This compensates for adhesive shrinkage during cooling and ensures a homogeneous bond.

Safety precautions to observe:

• Wear heat-resistant gloves: melted glue exceeds 150 °C
• Work in a well-ventilated space to avoid inhaling vapors
• Never leave the gun heating unnecessarily: risk of adhesive degradation
• Keep out of reach of children

In case of unwanted glue strings, a brief pass with a low-flow hot air gun allows them to retract without damaging the bond.

FAQ - 3M 3792 hot melt adhesive

1. At what temperatures can the 3M 3792 adhesive be used?

The 3M 3792 is a hot melt adhesive designed to be applied at high temperature, around 190 °C.

It offers good service performance up to approximately 80 °C, which makes it suitable for slightly warm environments but not for applications exposed to intense heat.

2. What materials can be bonded with the 3M 3792?

This adhesive adheres effectively to a wide spectrum of materials: wood, cardboard, fabrics, foams, plastics, and certain light metals.

It is particularly used in packaging, furniture, crafts, and the assembly of light parts. It is not recommended on very smooth or oily surfaces without prior preparation.

3. What is the difference between the 3M 3792 and the 3M 3748?

The 3M 3748 is a low-temperature adhesive (approx. 120 °C), ideal for heat-sensitive materials such as certain thin plastics or delicate foams.

The 3M 3792 works at high temperatures and develops a stronger adhesion, better suited for mechanically stressed assemblies.

4. How long does it take for the 3M 3792 to set?

The setting is very fast: within a few seconds after application, the joint begins to solidify as it cools.

The full mechanical strength is reached in less than a minute in most cases, which speeds up production or assembly rates.

5. Is the 3M 3792 resistant to moisture?

Yes, the 3M 3792 exhibits good resistance to ambient moisture and occasional water splashes.

However, it is not designed for prolonged immersion. For applications in constantly damp environments, a polyurethane or epoxy adhesive will be more suitable.

6. At Dagobert Industrie, with which gun should the 3M 3792 be used?

The 3M 3792 is compatible with the 3M high-temperature glue gun range, notably the 3M PG II and 3M Scotch-Weld models adapted for large diameter sticks.

At Dagobert Industrie, we advise you to check the compatibility of the stick diameter (generally 12 mm or 43 mm) with your gun before any use.
